Frame Family

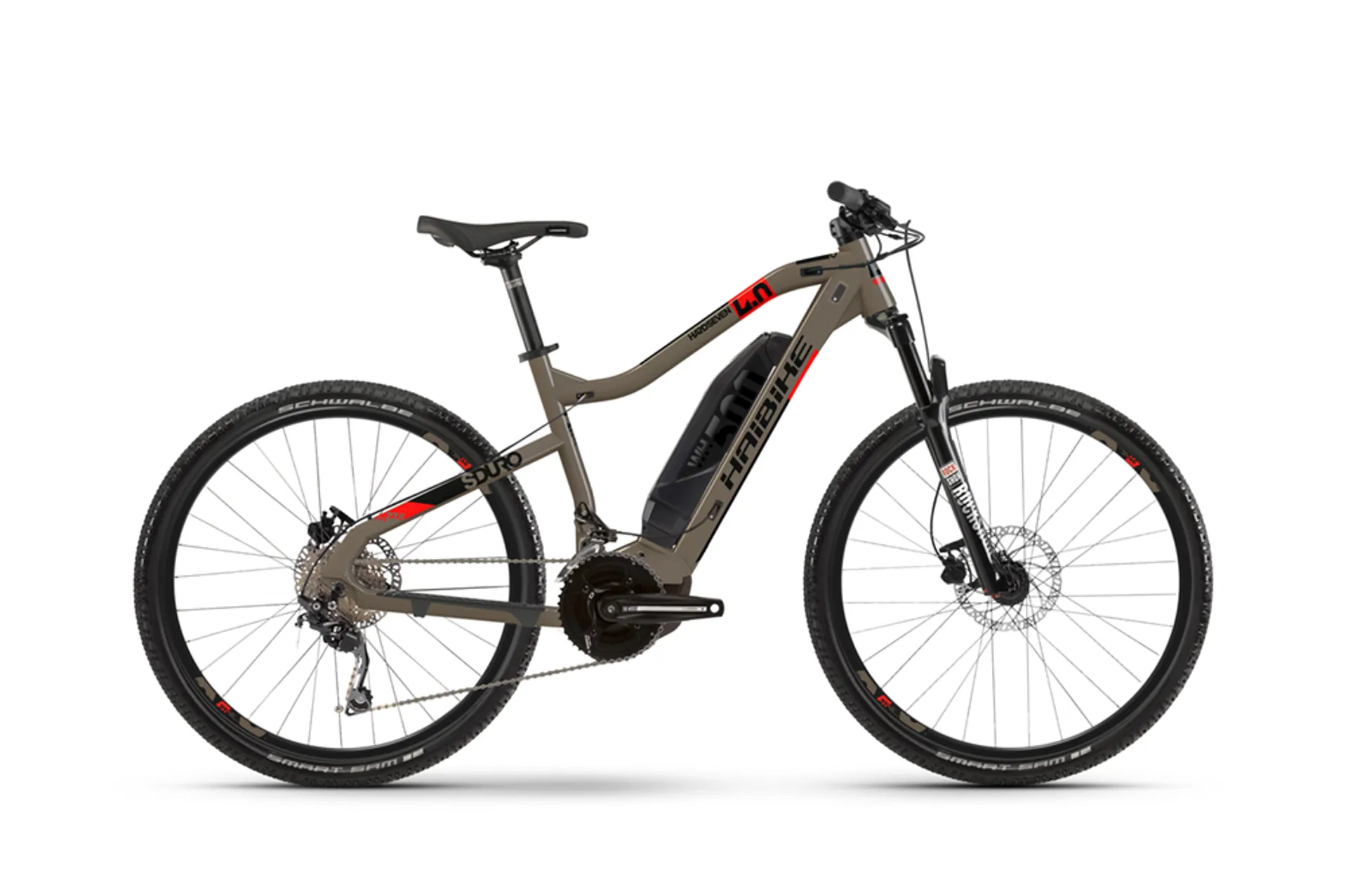

Haibike, SDURO HardSeven, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Fork
RockShox, Recon TK, Steel spring/oil, Travel= 120 mm, 15 x 110mm thru-axle Boost
Rear Derailleur
Shimano, Deore M6000
Shift Lever
Shimano, Deore M6000, Rapidfire, 20 speed
Sprocket
Shimano, HG500, 11 - 42 teeth
Bottom Bracket
integrated in the motor
Crank Arm
Haibike Components, The Crank +, Aluminium
Chain
KMC, e10S
Chainring
Aluminium, 44 teeth
Brake Lever
Shimano, MT401, Aluminium
Brake Disc (Front)
Shimano, RT30-M
Brake (Front)
Shimano, MT400, 180 mm, 2-piston disc brake
Brake Disc (Rear)
Shimano, RT30-M
Brake (Rear)
Shimano, MT400, 180 mm, 2-piston disc brake
Tube
Presta valve
Tyre
Schwalbe, Smart Sam , 57-584, 27.5" x 2.25"
Rim (Rear, If Different)
Rodi, Black Rock 21, with eyelets, hollow rim, Aluminium
Rim
Rodi, Black Rock 21, with eyelets, hollow rim, Aluminium
Front Wheel Hub
Shimano, MT400-B, Centerlock
Rear Wheel Hub
Shimano, Centerlock
Spokes
Sapim, Leader, black
Handlebar
Haibike Components, TheBar + Topflat, 720 mm
Grips
Haibike, MTB grips
Stem
Haibike Components, The Stem +, A-head
Headset
Feimin, A-Head Tapered, ball bearing
Saddle
Haibike Components, TheSaddle
Seat Post
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Pedals
Freeridepedal, Aluminium, mit Reflektor
Clamping Ring
Quick release, 34.9 mm
Engine
Yamaha, PW-ST System, 250 W, 70 Nm, 25 km/h
Weight (Kg)
22.0 kg
Permitted Total Weight
120.0 kg
Battery
Yamaha, Lithium Ion, 500 Wh
