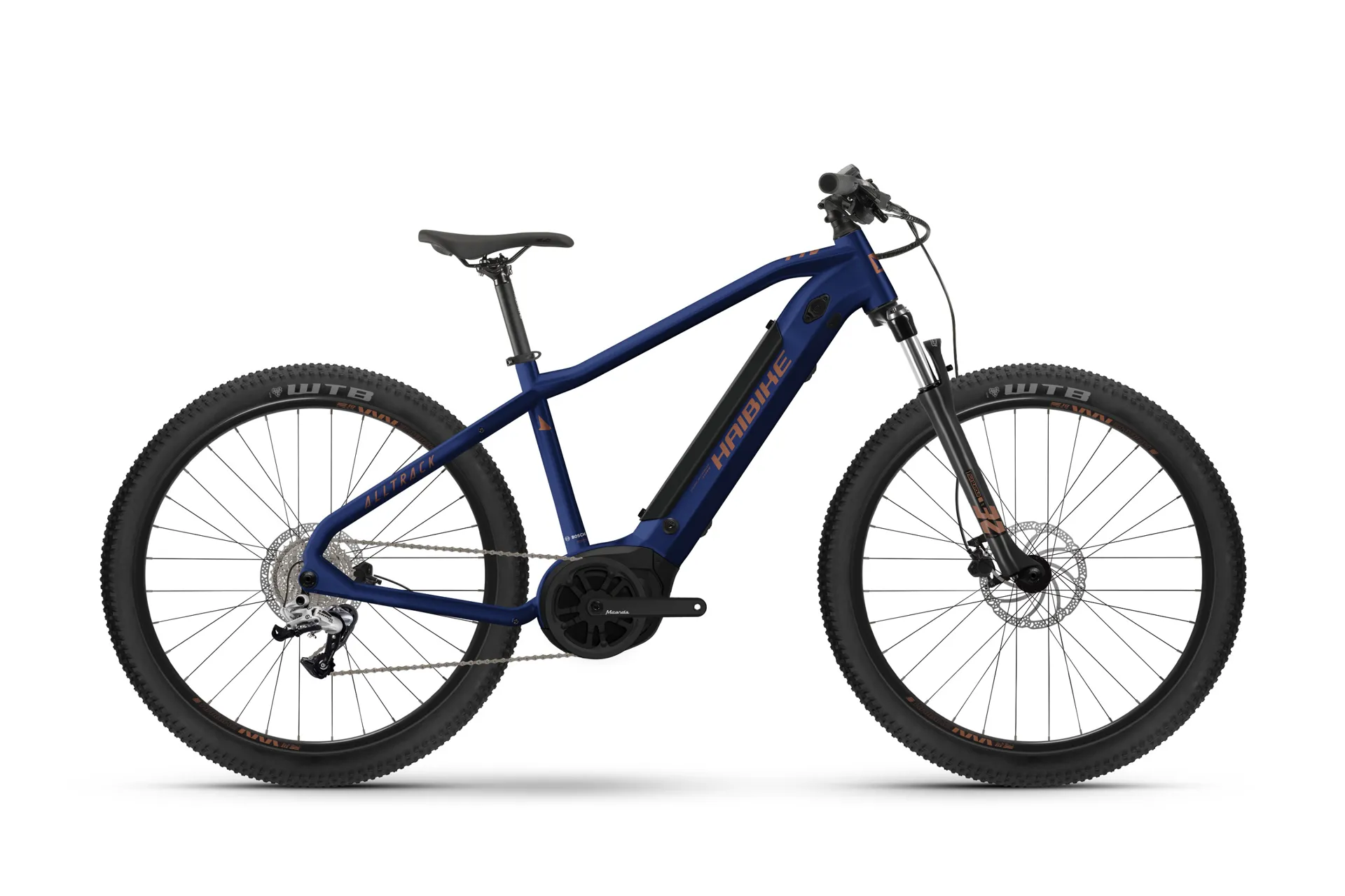

Haibike Alltrack 4 29er Electric MTB Bike Alloy Blue 2023

Season:2023

Brand:Haibike

Code:HKCP2BLU

Are you looking for an entry-level hardtail eMTB with a powerful drive? Our new ALLTRACK 4 convinces with a sophisticated component mix, and a powerful Bosch Performance Line motor that offers you the right support in any terrain. Reliable Shimano shifting components and powerful disc brakes ensure a pleasureable and safe riding experience. The ALLTRACK 4 is available in frame sizes S and M with 27.5" wheels. The sizes M to XL roll on 29" tyres.

Technical Information

- ENGINE
  Bosch, Performance Line Gen3 60, 250W
- DISPLAY
  Bosch, LED Remote
- BATTERY
  Bosch, PowerTube, 500 Wh
- FORK
  SR Suntour, XCM32 Boost DS, Steel spring/oil, 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
- CRANK ARM
  Miranda No.7, Steel
- BRAKE (FRONT)
  Alhonga, HT472, Hydraulic disc brakes
- BRAKE (REAR)
  Alhonga, HT472, Hydraulic disc brakes
- TUBE
  Presta valve
- RIM
  Schürmann, Yak25, with eyelets, hollow rim, Aluminium
- CLAMPING RING
  quick release, Quick release, 34.9 mm
- REAR DERAILLEUR
  Shimano, Alivio M3100
- SHIFT LEVER
  Shimano, Alivio M3100, Trigger switch
- BOTTOM BRACKET
  integrated in the motor
- SPROCKET
  Shimano, HG200, 11 - 36 teeth
- CHAIN
  KMC, e9S
- CHAINRING
  Steel, 38 teeth
- CHAIN GUIDE
  Nylon directmount
- BRAKE LEVER
  Alhonga, HT472, Aluminium,
- BRAKE DISC (FRONT)
  Alhonga, DXR1806, 180 mm
- BRAKE DISC (REAR)
  Alhonga, DXR1806, 180 mm
- TYRE
  WTB, Ranger Comp, 55-622, 29" x 2.3"
- REAR WHEEL HUB
  Alu Nabe, 6-bolt standard
- SPOKES
  Sapim, Leader, Black
- HANDLEBAR
  XLC, 720 mm
- STEM
  XLC, A-Head, A-head, 31.8 mm
- HEADSET
  Feimin, A-Head Tapered, Ball bearing
- SADDLE
  XLC, MTB
- SEAT POST
  XLC, Aluminium, Patent, 31.6 mm
- PEDALS
  Freeridepedal, Aluminium, with Reflector
- PERMITTED TOTAL WEIGHT
  120.0 kg
- GEAR SHIFT
  Shimano, Nexus

Sizing Information

FRAME SIZE (I.E. S, M, ...)	M	L	XL
AFRAME HEIGHT (CM)	45.0 cm	49.0 cm	53.0 cm
BSEAT TUBE ANGLE	75.0 degrees	75.0 degrees	75.0 degrees
DSEAT ANGLE	75.0 degrees	75.0 degrees	75.0 degrees
EHEAD TUBE LENGTH	120.0 mm	135.0 mm	160.0 mm
FHEAD TUBE ANGLE (DEGREES)	65.0 degrees	65.0 degrees	65.0 degrees
GTOP TUBE HORIZONTAL	606.0 mm	639.0 mm	671.0 mm
HCHAIN STAY LENGTH	495.0 mm	495.0 mm	495.0 mm
IBOTTOM BRACKET DROP	-69.0 mm	-64.0 mm	-64.0 mm
JWHEELBASE	1251.0 mm	1278.0 mm	1323.0 mm
KSTACK	653.0 mm	661.0 mm	684.0 mm
LREACH	427.0 mm	457.0 mm	483.0 mm
