Our Haibike ALLMTN 7 offers uncompromising ePerformance on the trail

Haibike

Haibike Allmtn 7 Green Caramel Blue Full Suspension

£4,768.99 £5,299.00 10% off

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Fast & Free Click & Collect
All bikes fully safety checked and inspected
30 days free insurance with all bikes
Free 6 week check up
Test rides available
Hassle Free Returns

Returns & Replacements

Parts, Accessories and Clothing can be returned within 30 days of purchase instore or online.

Bikes + Frames can be returned within 30 days if ordered online.
Goods must be in original undamaged packaging and packed to prevent damage during transit, please contact us if you require advice on packaging.
Goods must not have been fitted or used and be suitable for resale
We recommend using a recorded postal service.
Online purchases: We are not responsible for the cost of returning items unless we sent you the wrong item or the item was damaged or faulty. In which case we will refund reasonable postal costs, excluding special delivery, premium postal services or international postage.
Instore purchases: All instore orders must be returned and collected from the store they were ordered from.
Cyclo Monster Limited is not responsible for compensating for any loss, time or costs in undertaking a return for any reason including warranty returns.
All return requests should be submitted in writing or via email.
Special orders items (i.e not instock at time of order and ordered in specifically for a customer) that are cancelled after order may incure a 15% restocking fee or loss of deposit.
We do not accept returns on custom bike builds, bikes that have been ridden or any other custom items.
NOTE: Please do not tape up or attach labels direct to the retail packaging, please wrap the product first.

Please complete our returns form if you need to return an item

Haibike Allmtn 7 Green Caramel Blue Full Suspension

Season:2024

Brand:Haibike

Code:HMDN1BLU

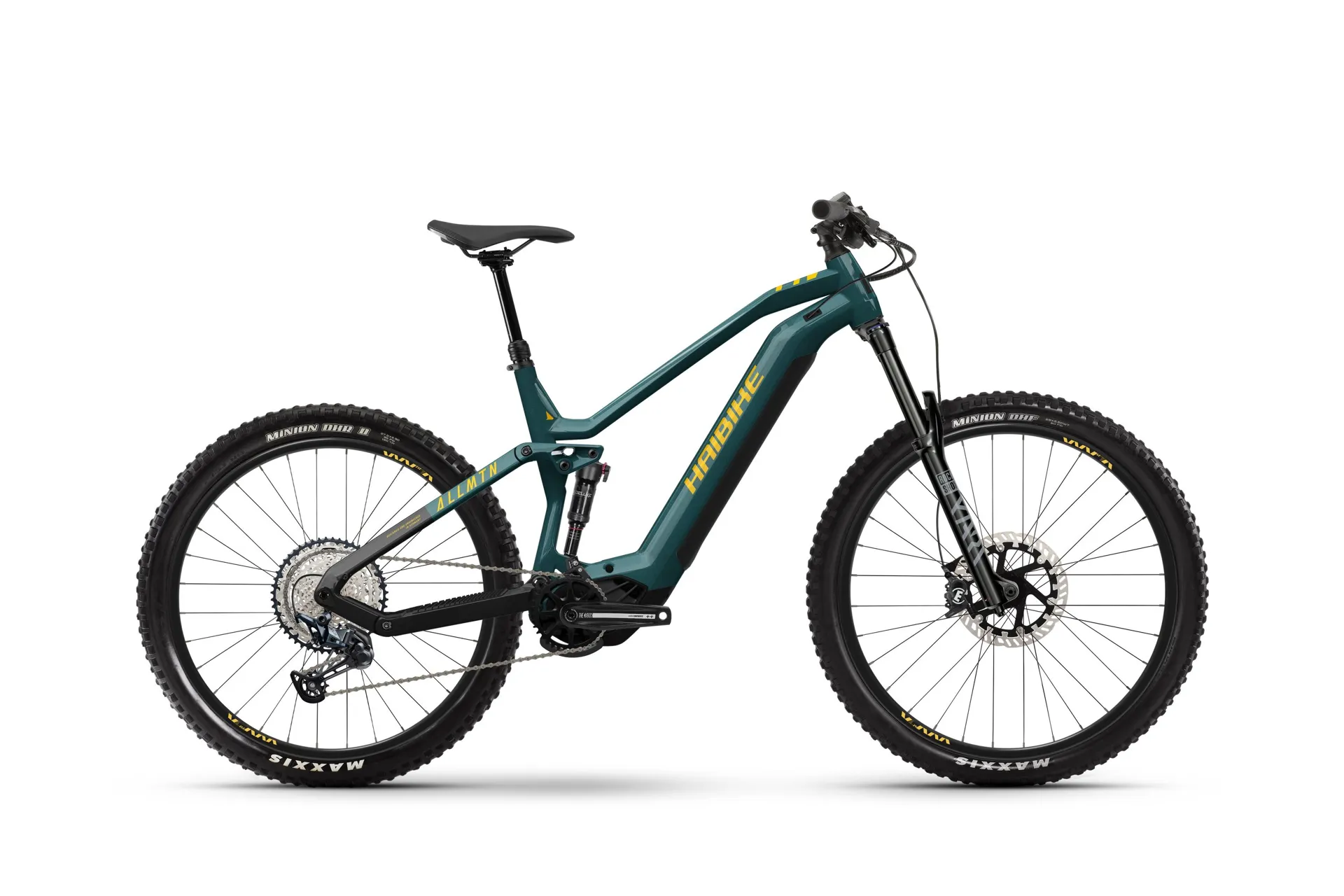

Our Haibike ALLMTN 7 offers uncompromising ePerformance on the trail: The compact and powerful Yamaha PW-X3 motor guarantees optimal support, its 720 Wh battery providing enough range for even longer rides. The wheel size mix of 29"/27.5" ensures optimum traction uphill and good rollover performance downhill. With the 160 mm FOX 36 Float Performance air suspension fork, a SRAM GX Eagle rear derailleur and Magura MT7 4-piston disc brakes you are well equipped for any adventure, mastering jumps or challenging lines safely and confidently.

Key features

Fork
FOX 36 Float Performance, Travel: 160mm
Battery
InTube 720 Wh
Drive unit
Yamaha PW-X3, 85Nm, 25km/h
Mixed wheel sizes
27.5" / 29"

Technical Information

Specifications

- Engine
  Yamaha, PW-X3, 250 W, 85 Nm
- Display
  Yamaha, Interface - X
- Battery
  InTube, 720 Wh
- Frame family
  Haibike, AllMtn PW-X3, Aluminium
- Fork
  FOX, 36 Float Performance Luft 160, Lockout, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
- Damper
  FOX, Float DPS Performance EVOL LV Trunnion, Air, Trunnion
- Crank arm
  Haibike Components, The Crank ++, Aluminium
- Brake (front)
  Magura, MT7, 4-piston disc brake
- Brake (rear)
  Magura, MT7, 4-piston disc brake
- Tube
  Presta valve
- Rim
  WTB, ST i30 TCS, Double Wall
- Clamping ring
  Internal hexagon, 38.1 mm
- Rear derailleur
  Sram, GX Eagle
- Shift lever
  Sram, CX Eagle, Trigger switch
- Bottom bracket
  integrated in the motor
- Sprocket
  Sram, Eagle PG1230, 11 - 50 teeth
- Chain
  Sram, SX Eagle
- Chainring
  Sram, 38 teeth
- Chain guide
  Nylon directmount
- Brake lever
  Magura, MT7 HC-lever
- Brake disc (front)
  Magura, MDR-P 203, 203 mm
- Brake disc (rear)
  Magura, MDR-P 203, 203 mm
- Tyre
  Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch
- Front wheel hub
  Haibike Components, The Hub ++, 6-bolt standard
- Rear wheel hub
  Haibike Components, TheHub ++ Thru axle 12x148, 6-bolt standard
- Spokes
  Sapim, Race
- Handlebar
  Haibike Components, TheBar +++, 780 mm
- Grips
  Haibike, MTB grips
- Stem
  Haibike Components, TheStem +++, 31.8 mm
- Headset
  Acros, BlockLock, Aluminium
- Saddle
  fi'zi:k, Terra Aidon X5-160
- Seat post
  Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
- Pedals
  Freeridepedal, Aluminium, with Reflector
- Permitted total weight
  120.0 kg
- Tyre (rear)
  Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch
- Rim (rear)
  WTB, ST i35 TCS, Double Wall

Sizing Information

Geometry

Frame size (i.e. S, M, ...)	S	M	L	XL
AFrame height (cm)	41.0 cm	44.0 cm	47.0 cm	50.0 cm
BSeat tube angle	75.0 degrees	75.0 degrees	75.0 degrees	75.0 degrees
CSeat tube offset (mm)	23.0 mm	23.0 mm	23.0 mm	23.0 mm
DSeat angle	77.0 degrees	77.0 degrees	77.0 degrees	76.9 degrees
EHead tube length	120.0 mm	120.0 mm	130.0 mm	140.0 mm
FHead tube angle (degrees)	64.5 degrees	64.5 degrees	64.5 degrees	64.5 degrees
GTop tube horizontal	570.0 mm	600.0 mm	627.0 mm	659.0 mm
HChain stay length	460.0 mm	460.0 mm	460.0 mm	460.0 mm
IBottom bracket drop	-20.0 mm	-20.0 mm	-20.0 mm	-20.0 mm
JWheelbase	1220.0 mm	1250.0 mm	1279.0 mm	1313.0 mm
KStack	646.0 mm	646.0 mm	655.0 mm	664.0 mm
LReach	421.0 mm	451.0 mm	475.0 mm	505.0 mm
