ENGINE
Yamaha, PW-X3, 250 W, 85 Nm
DISPLAY
Yamaha, Interface - X
BATTERY
InTube, 720 Wh
FRAME FAMILY

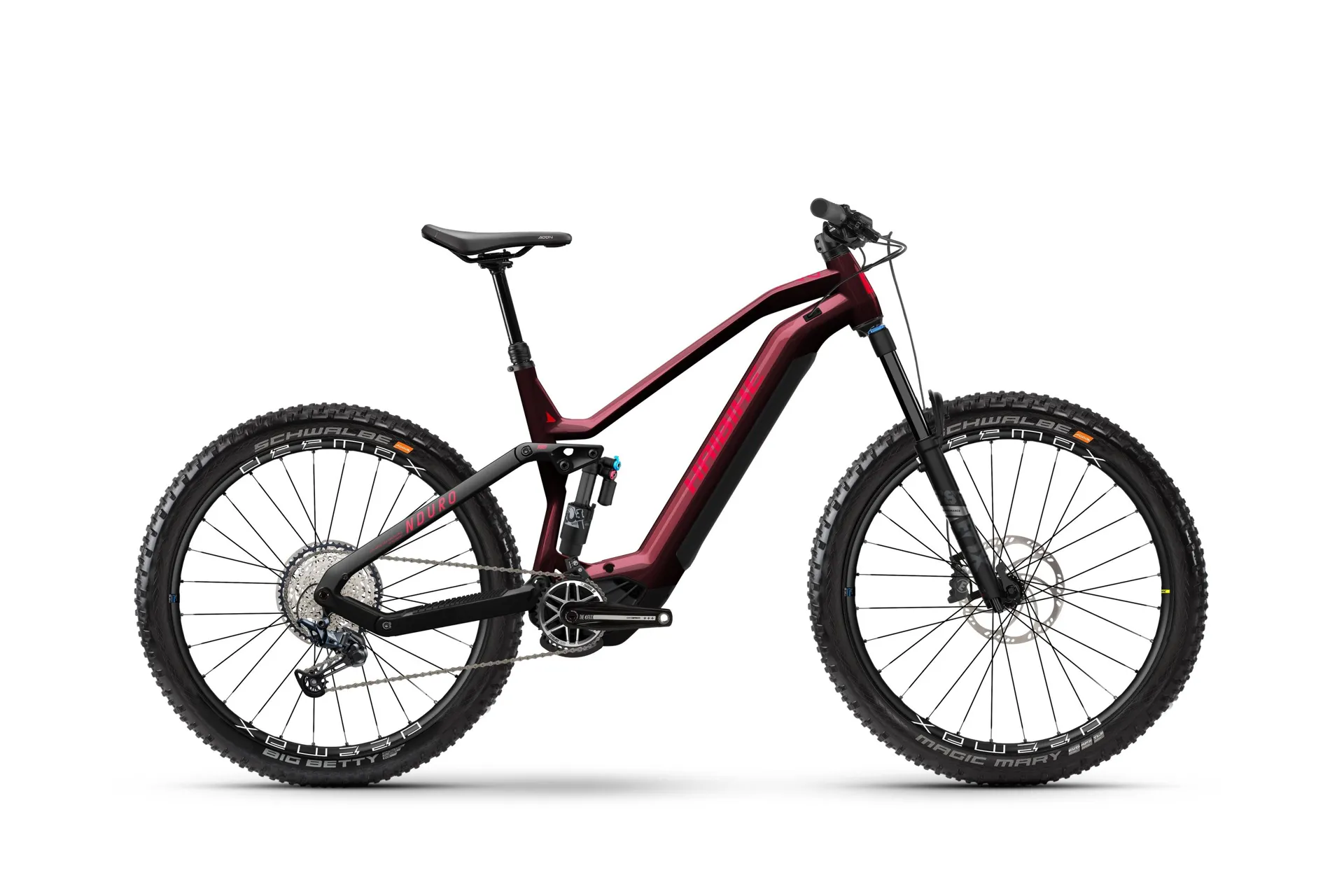

Haibike, Nduro PW-X3 , Aluminium
FORK
FOX, Performance 38, Air, 180 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
DAMPER
FOX, Performance Float X2, Air, Trunnion Mount
CRANK ARM
Haibike Components, The Crank +++, Aluminium
BRAKE (FRONT)
Magura, MT7, 4-piston disc brake
BRAKE (REAR)
Magura, MT7, 4-piston disc brake
TUBE
Presta valve
CLAMPING RING
Internal hexagon, 38.1 mm
REAR DERAILLEUR
Shimano, SLX M7100
SHIFT LEVER
Shimano, Deore SLX M7100
BOTTOM BRACKET
integrated in the motor
SPROCKET
Shimano, M6100, 10 - 51 teeth
CHAIN
Shimano, CN-M6100
CHAINRING
Aluminium, 36 teeth
CHAIN GUIDE
Nylon directmount
BRAKE LEVER
Magura, MT7 HC-lever
BRAKE DISC (FRONT)
Magura, MDR-C 203, 203 mm
BRAKE DISC (REAR)
Magura, MDR-C 203, 203 mm
TYRE
Schwalbe, Magic Mary Evo TLE, 29 x 2.4 inch
WHEEL SET
Mavic, E- Deemax
HANDLEBAR
Haibike Components, TheBar +++, 780 mm
GRIPS
Haibike, MTB grips
STEM
Haibike Components, TheStem 2, A-head, 31.8 mm
HEADSET
Acros, BlockLock, Aluminium
SADDLE
fi'zi:k, Terra Aidon X5-160
SEAT POST
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
PEDALS
Freeridepedal, Aluminium, with Reflector
PERMITTED TOTAL WEIGHT
120.0 kg
TYRE (REAR)
Schwalbe, Big Betty Evo Gravity, 65-584, 27.5 x 2.6 inch
