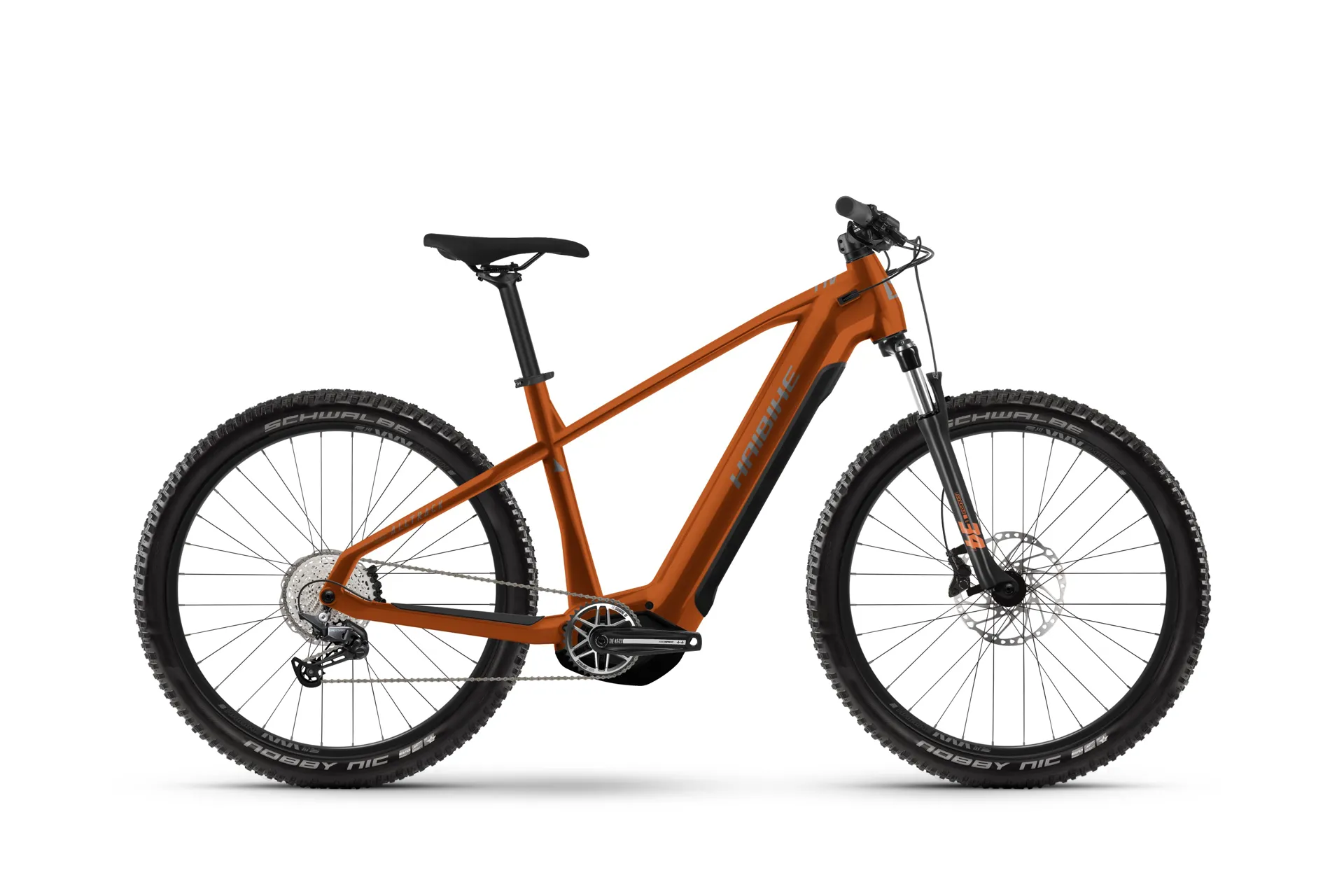

Haibike ALLTRACK 6 27.5er Electric MTB Bike - Gloss Orange Alloy 2023

Haibike ALLTRACK 6 27.5er Electric MTB Bike - Gloss Orange Alloy 2023-1

Haibike ALLTRACK 6 27.5er Electric MTB Bike - Gloss Orange Alloy 2023-2

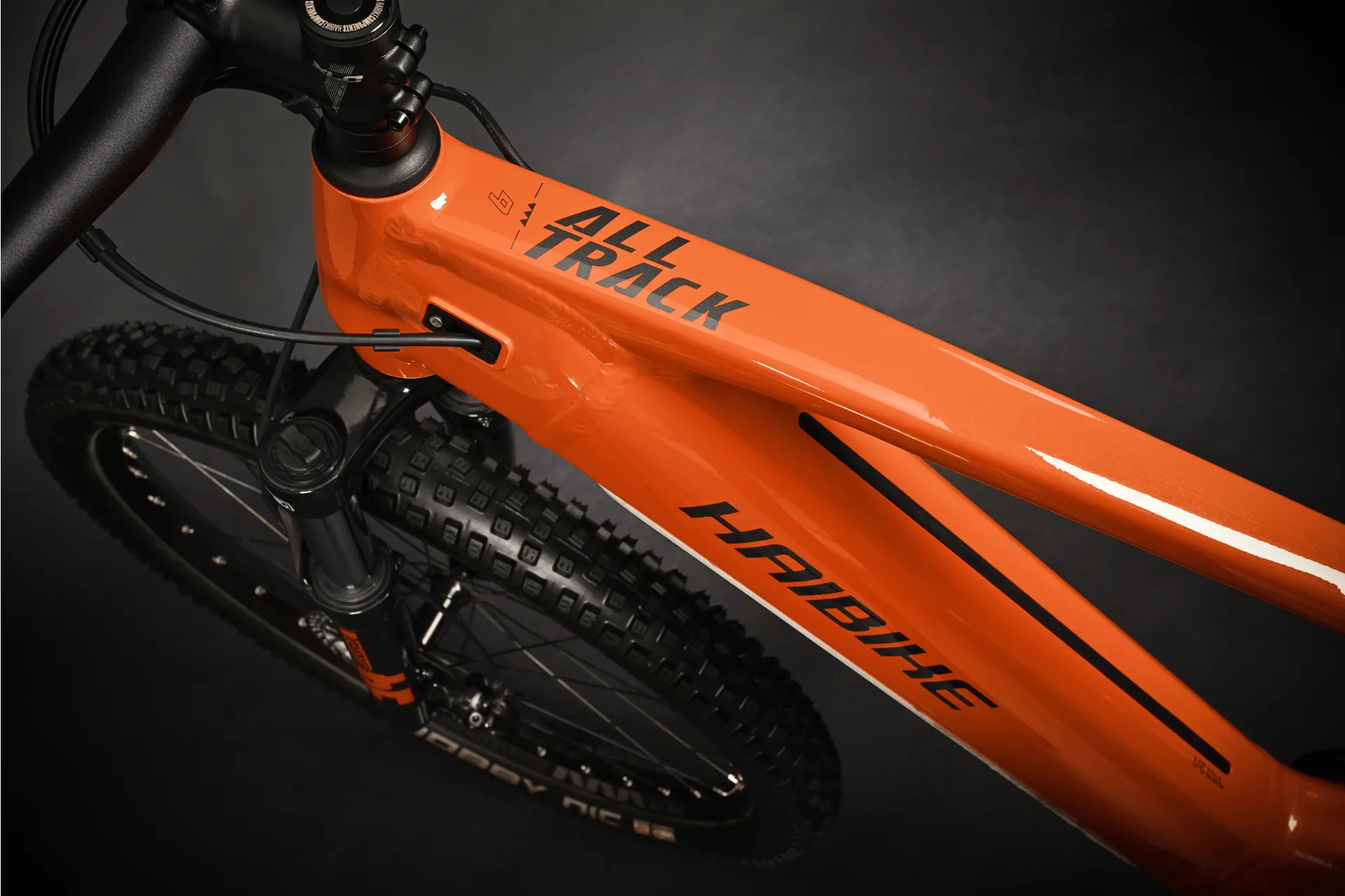

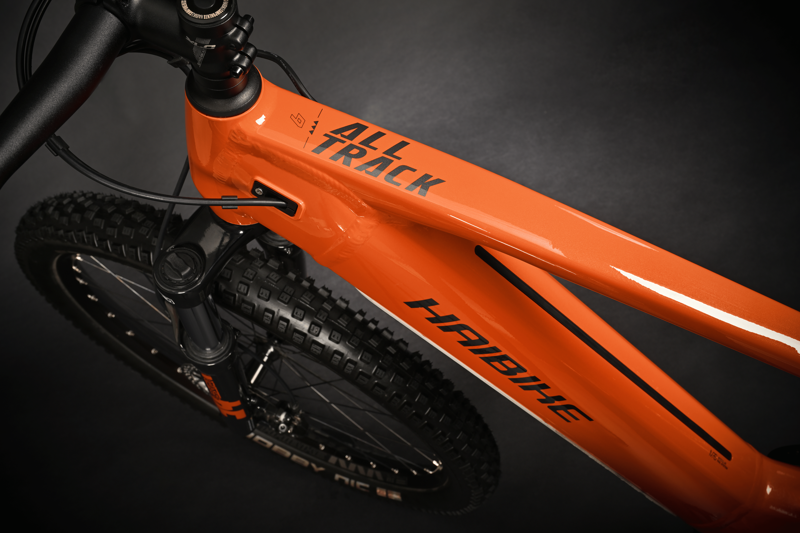

Haibike ALLTRACK 6 27.5er Electric MTB Bike - Gloss Orange Alloy 2023-3

Haibike ALLTRACK 6 27.5er Electric MTB Bike - Gloss Orange Alloy 2023-4

Haibike ALLTRACK 6 27.5er Electric MTB Bike - Gloss Orange Alloy 2023-5

Haibike

Haibike ALLTRACK 6 27.5er Electric MTB Bike - Gloss Orange Alloy 2023

£2,399.00 £2,999.00 20% off

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Fast & Free Click & Collect
All bikes fully safety checked and inspected
30 days free insurance with all bikes
Free 6 week check up
Test rides available
Hassle Free Returns

Returns & Replacements

Parts, Accessories and Clothing can be returned within 30 days of purchase instore or online.

Bikes + Frames can be returned within 30 days if ordered online.
Goods must be in original undamaged packaging and packed to prevent damage during transit, please contact us if you require advice on packaging.
Goods must not have been fitted or used and be suitable for resale
We recommend using a recorded postal service.
Online purchases: We are not responsible for the cost of returning items unless we sent you the wrong item or the item was damaged or faulty. In which case we will refund reasonable postal costs, excluding special delivery, premium postal services or international postage.
Instore purchases: All instore orders must be returned and collected from the store they were ordered from.
Cyclo Monster Limited is not responsible for compensating for any loss, time or costs in undertaking a return for any reason including warranty returns.
All return requests should be submitted in writing or via email.
Special orders items (i.e not instock at time of order and ordered in specifically for a customer) that are cancelled after order may incure a 15% restocking fee or loss of deposit.
We do not accept returns on custom bike builds, bikes that have been ridden or any other custom items.
NOTE: Please do not tape up or attach labels direct to the retail packaging, please wrap the product first.

Please complete our returns form if you need to return an item

Haibike ALLTRACK 6 27.5er Electric MTB Bike - Gloss Orange Alloy 2023

Season:2023

Brand:Haibike

Code:HKEP1ORG

Are you looking for a reliable hardtail eMTB for sporty use? Then our ALLTRACK 6 is the ideal bike for your eBike adventures! The brand new, powerful Yamaha PW-S2 motor, together with the integrated 720 Wh battery ensures great range, on or off road. Robust parts such as Shimano Deore rear derailleur, powerful disc brakes and the 120 mm SR Suntour suspension fork guarantee safe and comfortable riding pleasure. The ALLTRACK 6 is available in the smaller frame sizes S and M with 27.5" and in sizes M to XL with 29" wheels.

Technical Information

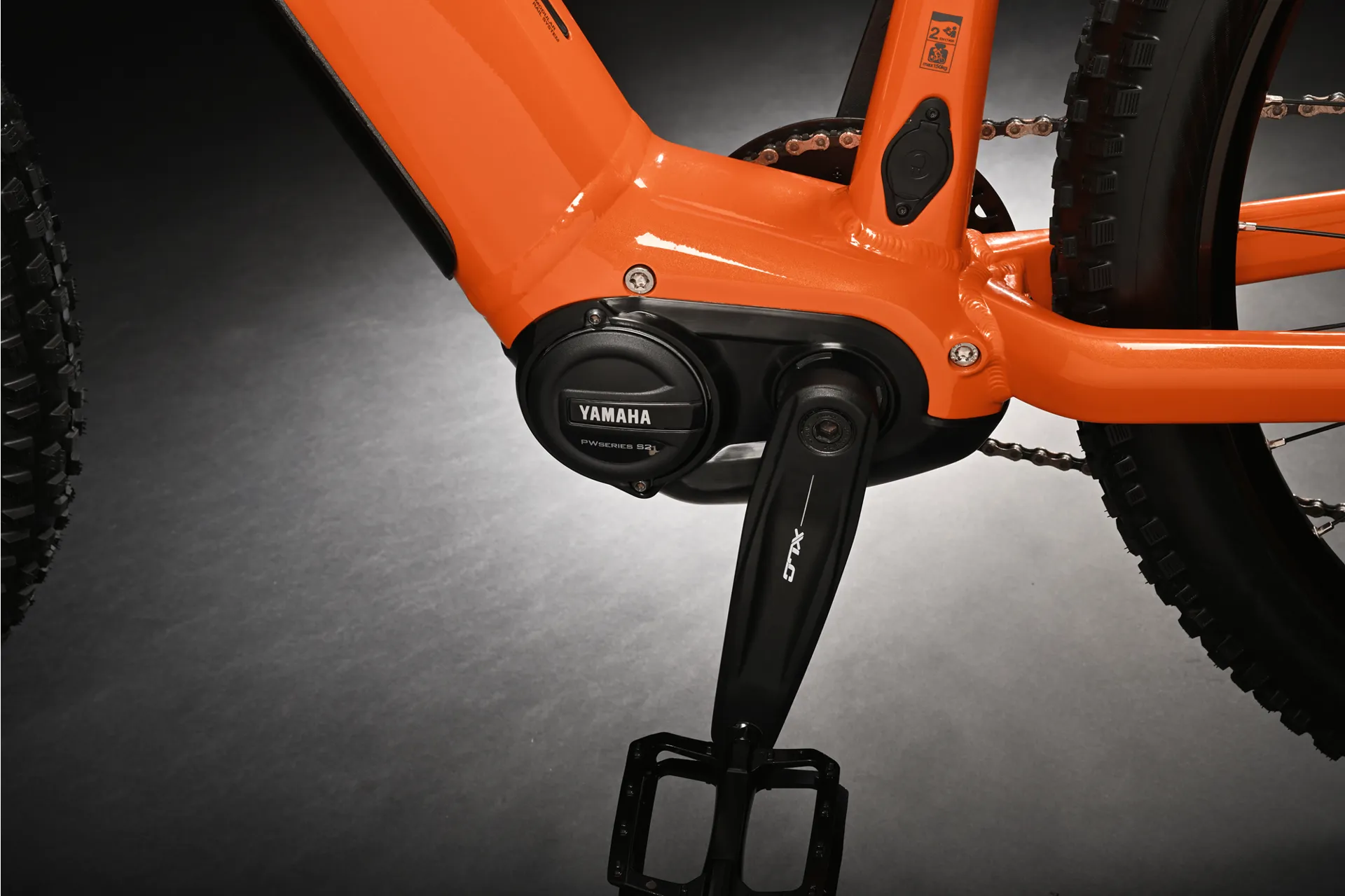

- ENGINE
  Yamaha, PW-S2, 250W, 75 Nm
- DISPLAY
  Yamaha, Side Switch, 1.7" LCD, 7 functions
- BATTERY
  InTube, 720 Wh
- FORK
  SR Suntour, XCM34 NLO DS, Steel spring/oil, 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
- CRANK ARM
  Miranda, Kies
- BRAKE (FRONT)
  Shimano, MT410, Hydraulic disc brakes
- BRAKE (REAR)
  Shimano, MT410, Hydraulic disc brakes
- TUBE
  Presta valve
- RIM
  Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
- CLAMPING RING
  Internal hexagon, 38 mm

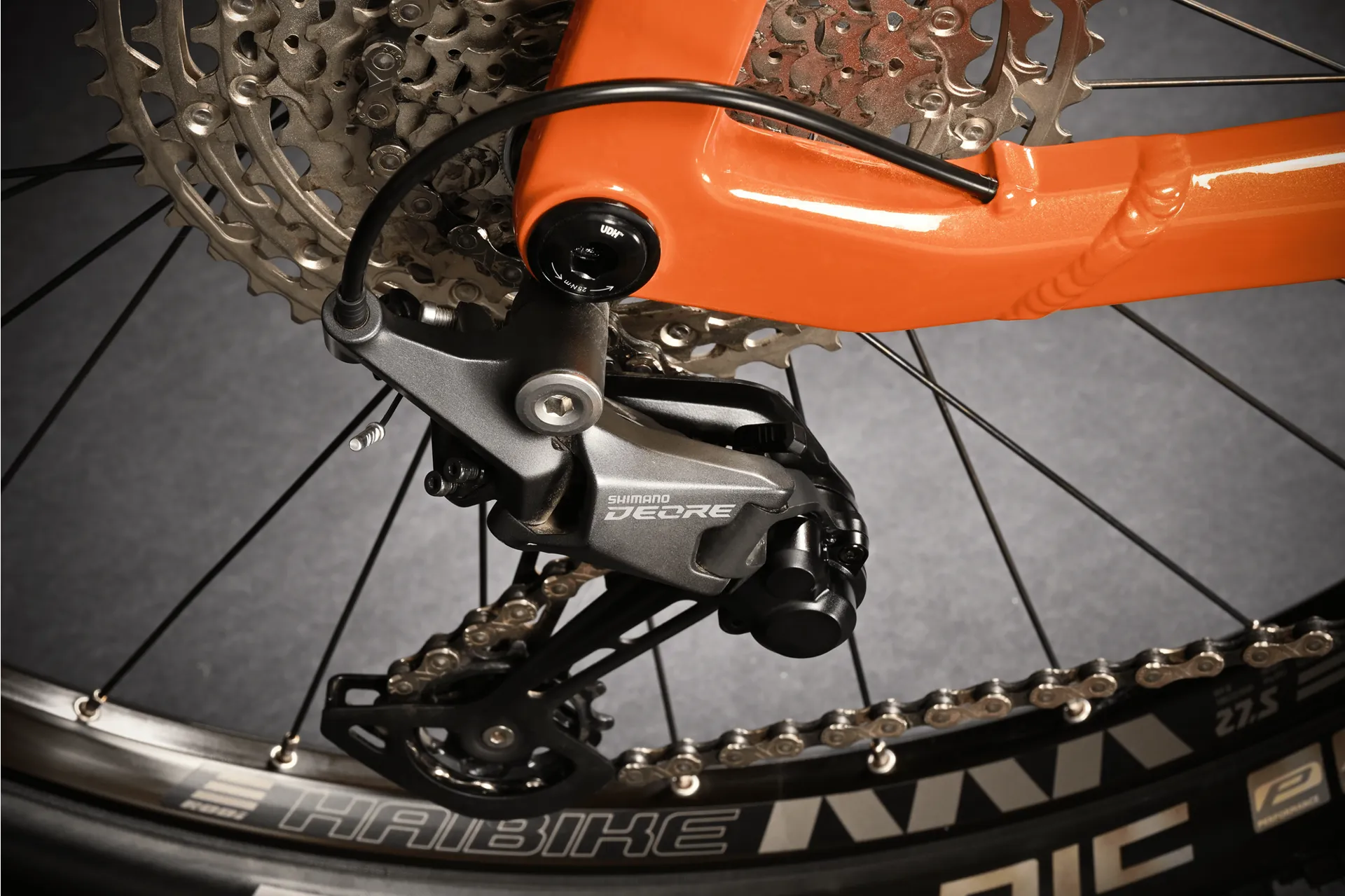

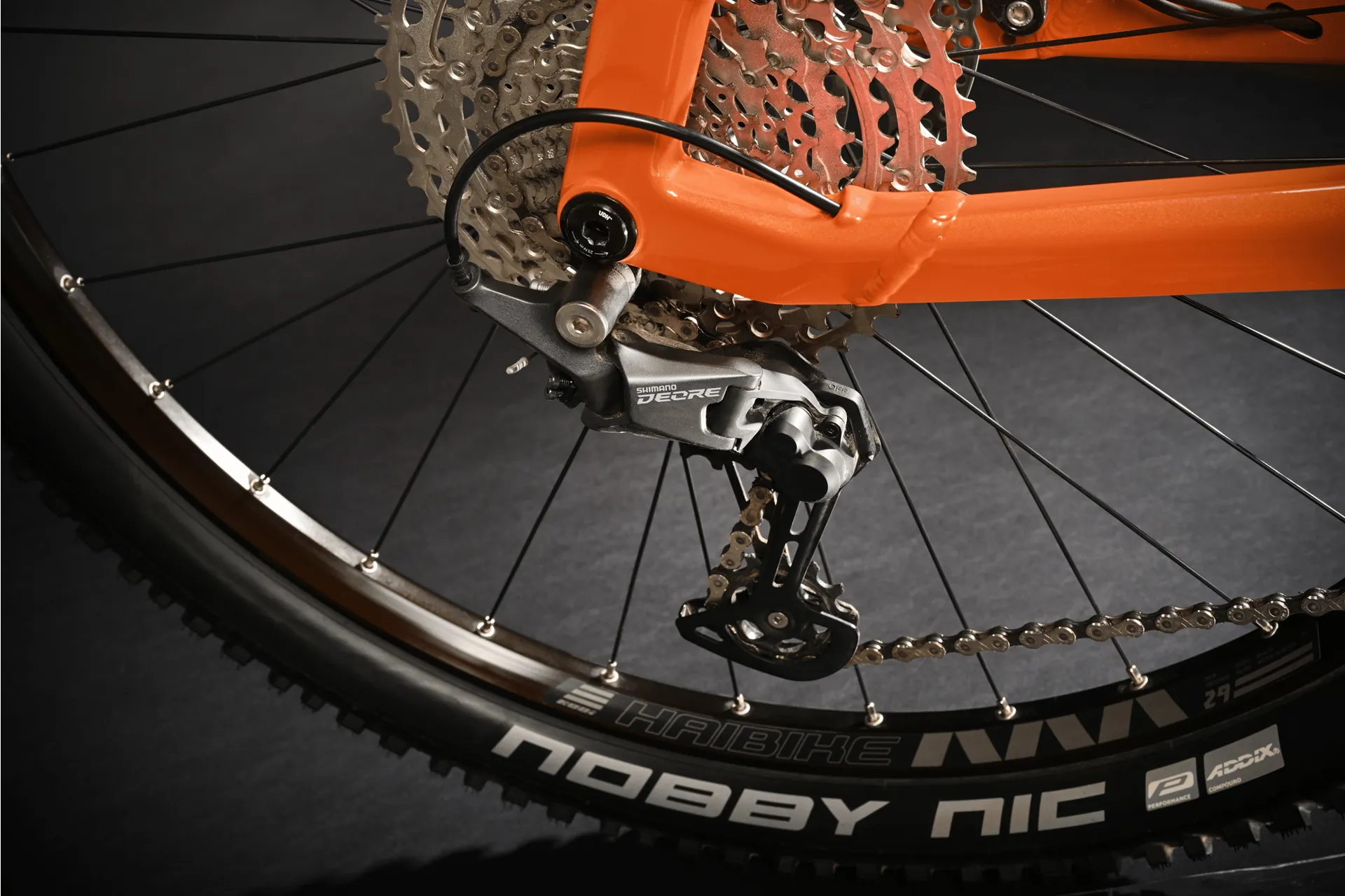

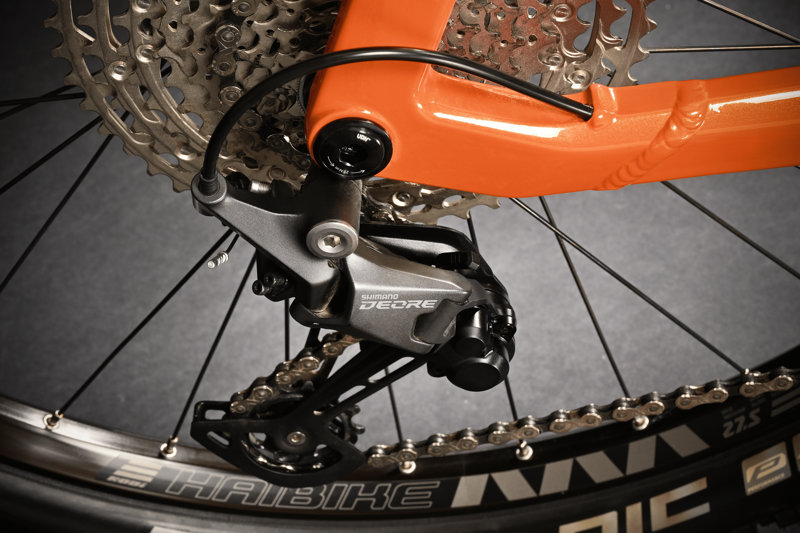

- REAR DERAILLEUR
  Shimano, Deore M5100

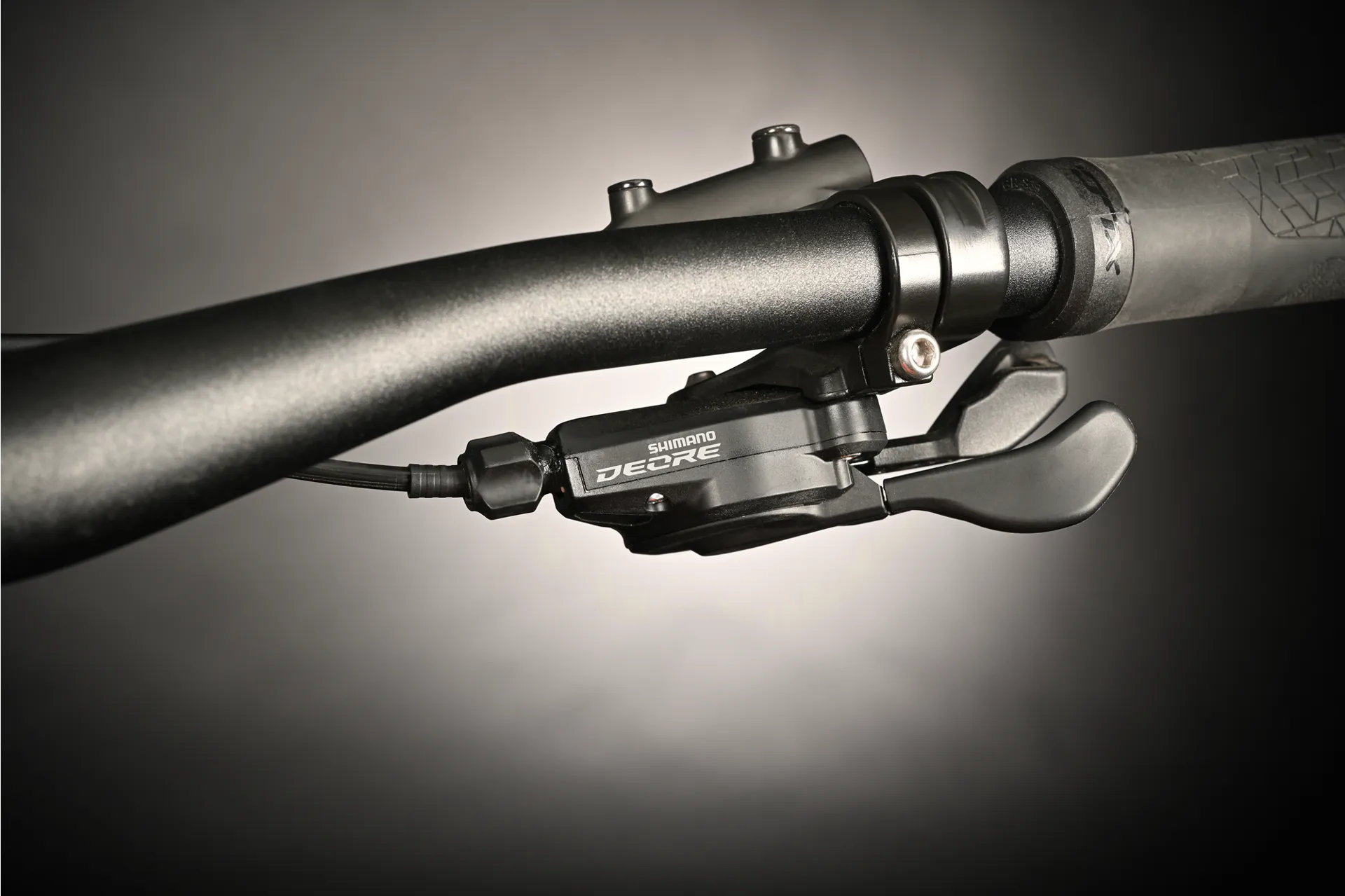

- SHIFT LEVER
  Shimano, Deore M5100, Trigger switch
- BOTTOM BRACKET
  integrated in the motor
- SPROCKET
  Shimano, M5100, 11 - 51 teeth
- CHAIN
  Shimano, HG601
- CHAINRING
  Steel, 38 teeth
- CHAIN GUIDE
  Nylon directmount
- BRAKE LEVER
  Shimano, MT401, Aluminium,
- BRAKE DISC (FRONT)
  Shimano, RT30-M, 180 mm

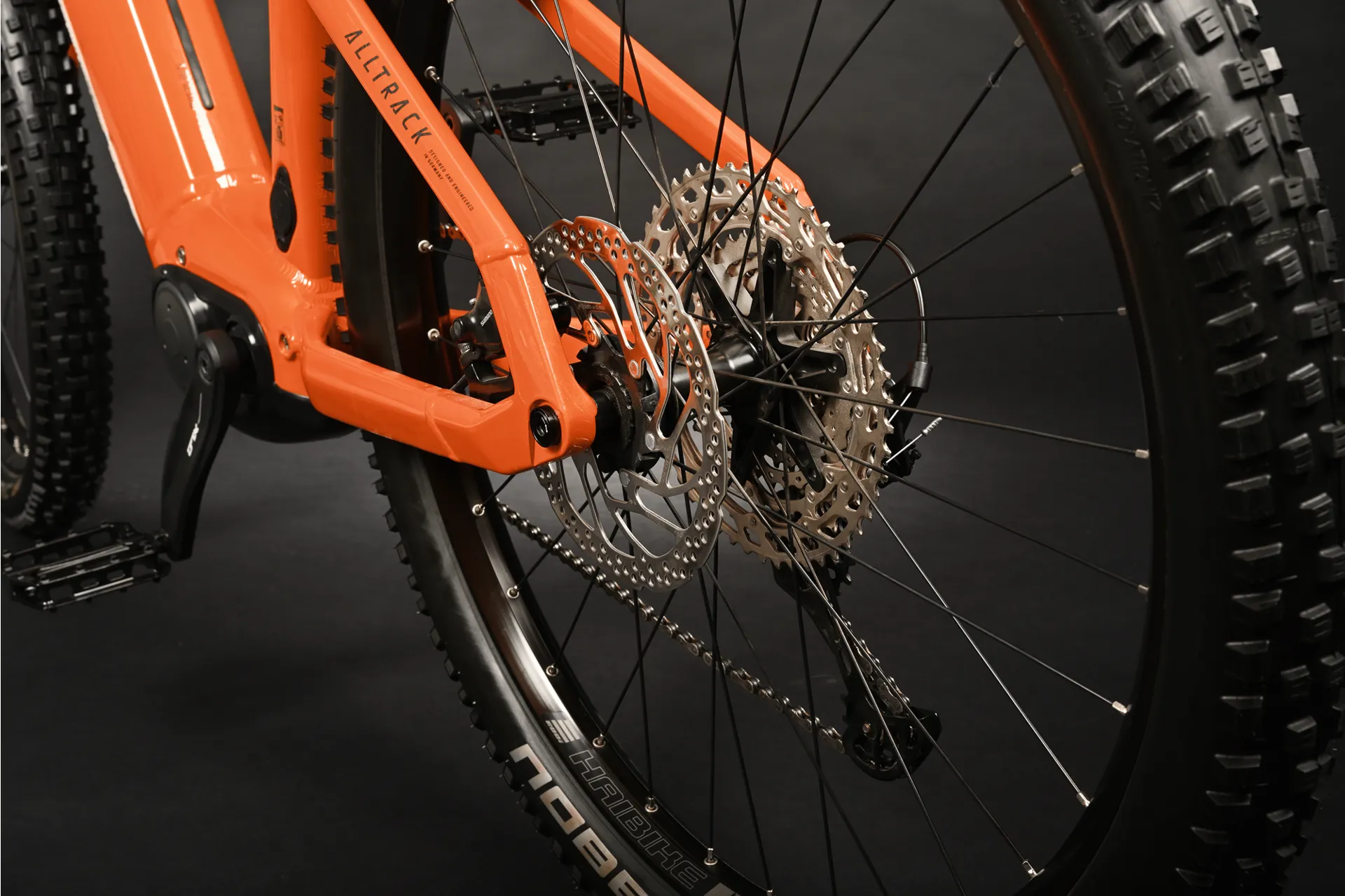

- BRAKE DISC (REAR)
  Shimano, RT30-M, 180 mm
- TYRE
  Schwalbe, Nobby Nic Performance, 65-584, 27.5" x 2.6"
- FRONT WHEEL HUB
  Shimano, MT400-B, Centerlock
- REAR WHEEL HUB
  Shimano, MT400-B, Centerlock
- SPOKES
  Sapim, Leader, Black
- HANDLEBAR
  XLC, 720 mm
- STEM
  XLC, A-Head, A-head, 31.8 mm
- HEADSET
  Feimin, A-Head Tapered, Aluminium, Cartridge
- SADDLE
  Selle Royal, Vivo Unitech
- SEAT POST
  Aluminium, Patent, 34.9 mm
- PEDALS
  Freeridepedal, Aluminium, with Reflector
- PERMITTED TOTAL WEIGHT
  120.0 kg
- GEAR SHIFT
  Shimano, Nexus

Sizing Information

FRAME SIZE (I.E. S, M, ...)	S	M
AFRAME HEIGHT (CM)	40.0 cm	45.0 cm
BSEAT TUBE ANGLE	74.0 degrees	74.0 degrees
DSEAT ANGLE	74.0 degrees	74.0 degrees
EHEAD TUBE LENGTH	140.0 mm	140.0 mm
FHEAD TUBE ANGLE (DEGREES)	68.0 degrees	68.0 degrees
GTOP TUBE HORIZONTAL	610.0 mm	620.0 mm
HCHAIN STAY LENGTH	465.0 mm	465.0 mm
IBOTTOM BRACKET DROP	-60.0 mm	-60.0 mm
JWHEELBASE	1171.0 mm	1181.0 mm
KSTACK	656.0 mm	656.0 mm
LREACH	422.0 mm	432.0 mm
