Trusted mavic technologies and design, all packaged in a lightweight, durable wheelset with a stunning finish make this a smart upgrade for any road rider.
This lightweight aluminium wheelset is a no brainer for anybody looking to make an easy upgrade from oem wheels. The ksyrium s can significantly boost any bike's performance and is an easy entry point to mavic quality that doesn't take any shortcuts.
**features**
**lightweight and durable for everyday performance**
* rim weight only 430g
* no rim tape is needed, saving 60g over a traditional wheelset
* flat, lightweight spokes and id360 freewheel technology
**laterally stiff, vertically compliant for a more dynamic ride**
* fore technology keeps the rim upper bridge solid to make the rim stiffer
* infinity hub platform: stiff axle, durable bearings and new hub design guarantees wheel stability
**improved ust road delivering speed, comfort and control**
* no tubes means less friction, improved efficiency and grip with reduced risk of punctures
* rim bed shape makes it easier to mount and change tyres
* fore carbon drilling technology means no rim tape is required
**weight: 1570g**
**understanding the different mavic freehub body acronyms:**
* hg or m11 â Shimano hg road 11/12x (other speeds with spacer)
* ms - Shimano microspline
* xd - SRAM xd
* xd-r - SRAM xd-r
* ed11 - campagnolo 9/12x
* n3w - campagnolo 13x
___
**additional information**
the ksyrium s is 60g lighter than the former ksyrium ust while also being stronger and laterally stiffer. Stiffness is optimised using fore technology. The upper bridge remains undrilled, optimising strength and rigidity, and it doesn't require the use of rim tape, which saves another 30g per wheel. The rim bed's shape makes it easier than ever to mount and remove tyres, and mavic's ust tubeless technology improves rolling resistance and grip while reducing the risk of punctures.
Mavic's infinity hub platform optimises stiffness and power transfer with highly controlled spoke tension, while their instant drive 360 freewheel coupled with the automatic bearing preload adjustment (qrm auto) delivers fast engagement and durability. The ksyrium s disc doesnât just ride fast, it looks fast too.
Matte painted hubs, invisible rim welding and deep black spokes give this wheelset a premium look that stands out from the crowd. It's available for shimano, campagnolo or xd-road.
**technologies**
**maxtal aluminium alloy**
light and strong. Exclusive to mavic, this specific aluminium alloy offers a higher strength to weight ratio than the conventional 6106 alloy.
**ism light rim technology**
inter spoke milling is an exclusive mavic patented concept. Ism involves the machining of the lower bridge of the rim between each spoke hole to create a light and rigid rim without reducing durability
**fore tapeless tubeless technology**
stiffer and stronger. Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.
**instant drive 360 technology**
super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
**isopulse lacing design**
optimum energy transfer. The spokes are laced radially on the drive side and crossed 2 on the non drive side to maximise the drive side dish, thus providing an improved spoke tension balance between left and right flanges.
**ust tubeless technology**
traction and control. The ust concept improves traction, control and comfort whilst reducing inertia and flats
**sup welding technology**
soude usine process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

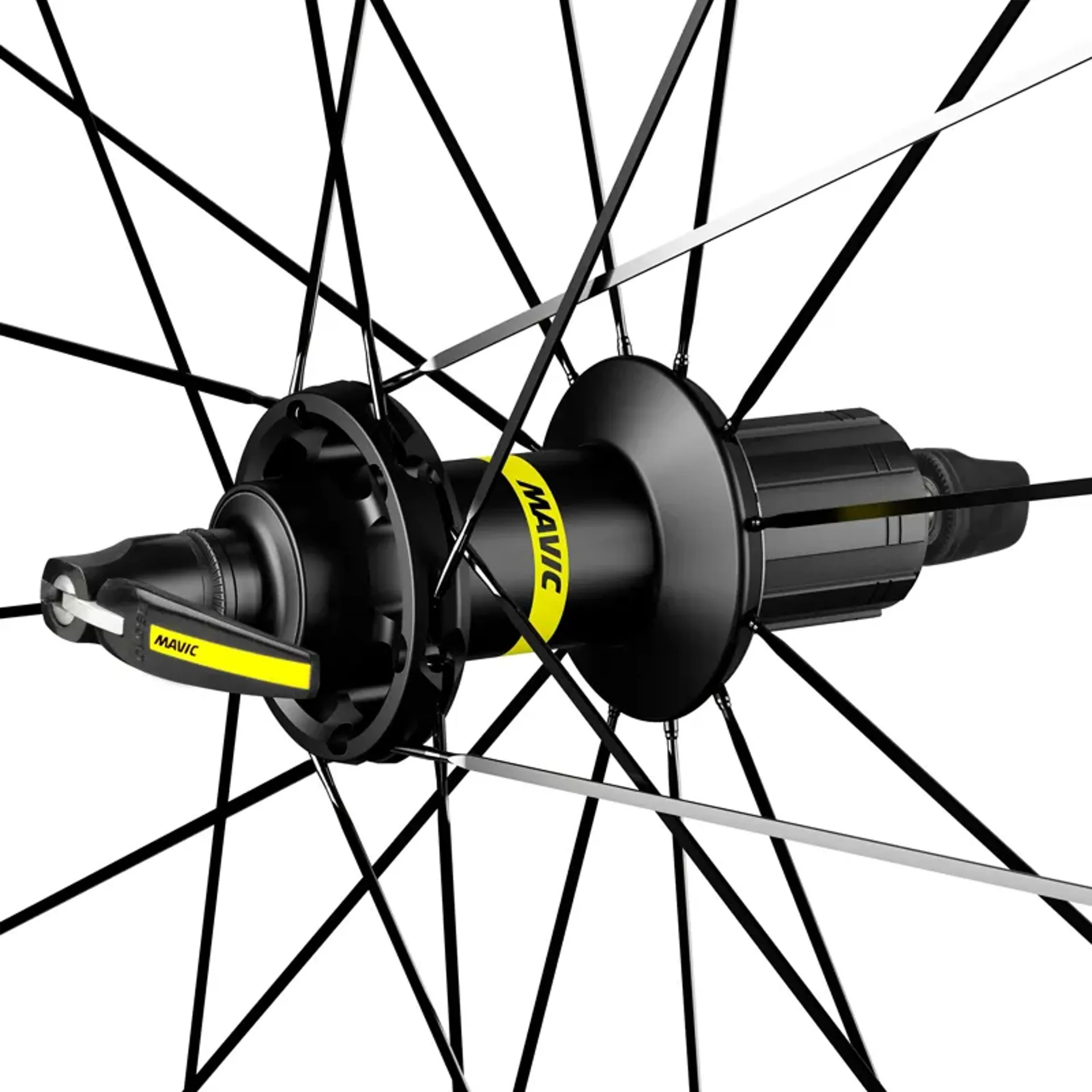

**infinity hub design**
an ultra reliable, high performance hub. Efficient power transfer thanks to the optimised non-contact spoke lacing and tension distribution. The length of the spokes are identical on the front and rear.
**qrm auto bearing preload technology**
qualite de roulements mavic auto. Cartridge bearings are double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
**technical specifications:**
* profile depth: 22mm
* inner width: 19mm
* front axle: 12 x 100mm
* rear axle: 12 x 142mm
* discipline: road
* spokes: straight, extra flat
* rim diameter: 700c
* nipples: brass, black
* rim material: maxtal aluminium alloy
* tyre compatibility: ust tubeless ready
* maximum weight: 120kg including bike
* bearings: aluminium
* etrto size: 622x19tc
* weight: 1570g
**what's in the box?**
* wheelset
* user guide
* quick release level 1
* ust valve not mounted on the wheel
* 2 multifunction adjustment wrench with the rear wheel
**intended use**
* minimum tyre size: width 23mm - pressure max. 6.75bar/97psi
* maximum tyre size: width 62mm - pressure max. 3.8bar/55psi
* astm category 2 : road and offroad with jumps less than 15cm
