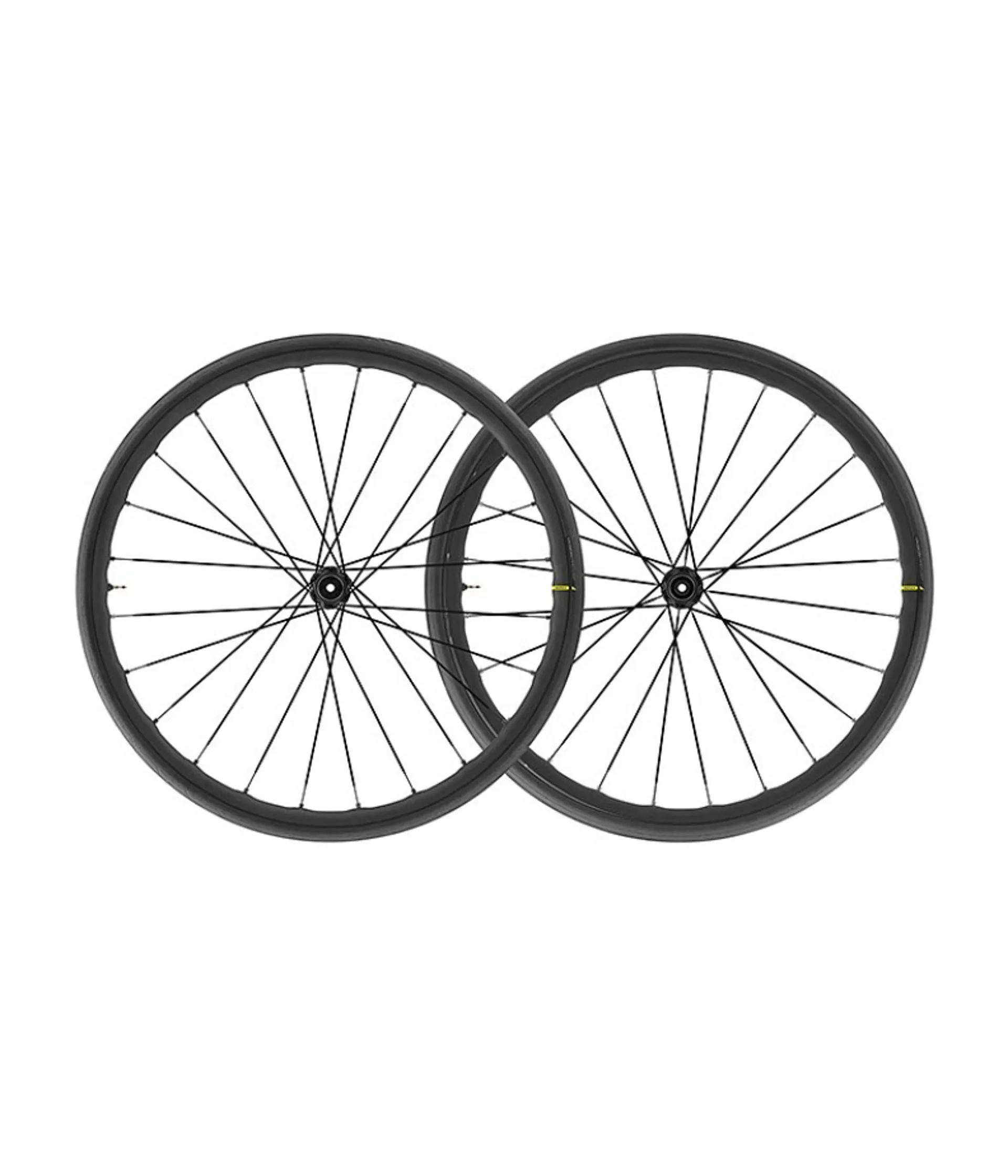

Updated with Road Tubeless technology and optimized for disc-brake performance, this proven performer is lightweight, strong and versatile.
Roll faster and smoother with a reduced risk of punctures.
With UST Road Tubeless, no tube means no friction. So you experience less rolling resistance and higher speeds. UST Road Tubeless lets you ride with lower tire pressure for a smoother ride and a reduced risk of punctures. Our patented UST system offers a perfect union between tire and wheel, so installation, removal and maintenance are easy.
Climb, accelerate and sprint faster.
19mm internal rim width increases air volume. ISM 4D superlight rim. Double-butted steel spokes keep the weight down, for a fast and comfortable ride.
Powerful, reliable disc brakes for more confidence and control.
24 spokes front and rear for optimized brake torque distribution. Front hub convertible from 12mm or 15mm thru-axle to quick release. Rear hub convertible from 12x142 thru-axle to quick release Center Lock brake compatible.
Rims
Internal width: 19 mm
Tyre: UST Tubeless and tubetype
Tyre
Yksion Pro UST
Efficiency & rigidity
QRM+
Safety & reliability
SUP
Lightness
ISM 4D
Efficiency & rigidity
Isopulse
Fore
Instant Drive 360
Lightness
Maxtal
Efficiency & rigidity
UST Tubeless Ready
UST
Rims
Material: Maxtal
Height: 22 mm
Joint: SUP
Drilling: Fore
Disc brake specific profile
Weight reduction: ISM 4D
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Internal width: 19 mm
ETRTO size: 622x19TC Road
Spokes
Material: steel
Shape: straight pull, flat
Nipples: Fore integrated aluminum
Count: 24 front and rear
Lacing: front crossed 2, rear Isopulse
Hubs
Front and rear bodies: aluminum
Axle material: aluminum
Front bearings : adjustable sealed cartridge bearings (QRM+), Rear bearings : auto adjust sealed cartridge bearings (QRM Auto)
Freewheel: Instant Drive 360
Front: Quick release, 12x100 and 15x100 through axle compatible
Rear: Quick Release, 12x142 and 12x135 compatible
Tyre
Yksion Pro UST
UST Tubeless Ready
Front and Rear Tread: 11 Storm single compound
Casing: 127 TPI
Breaker: Polyamide, from bead to bead
Dimension: 25-622 (700x25c)
Versions
Color: Black only
Disc standard: Center Lock(R) only
Compatibility
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
Front axle: 12mm thru axle, easily convertible to quick release with included adapters. Convertible to 15mm with complete axle replacement
Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
Compatible Adapters and freewheel bodies
12 to 9mm front adapter for quick release ([V2680301] - Delivered with the wheel)
15mm axle ([V2373501])
12x142 rear axle adapters ([V2510701] - Delivered with the wheel)
12 to 9mm rear adapter for quick release ([V2510801] - Delivered with the wheel)
12x135 rear axle adapters ([V2510901])
ID360 Shimano / Sram Light freewheel body ([V3850101])
ID360 Campagnolo freewheel body ([V3440101])
ID360 XD-R freewheel body ([V2580101])
ID360 Shimano / Sram freewheel body ([V3430101] - Delivered on the wheel)
Delivered with
Mavic tyre sealant (rear wheel)
Tyre sealant syringe
Front QR adapters
Rear QR adapters for Instant Drive 360
UST valve and accessories
User guide
Intended use
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
Recommended tyre sizes: 25 to 32 mm
Max. Pressure: see indication on wheel and tyre. If they differ, use the lower of the 2
Filters
brake type: disc
field: mountain
rim profile: low
rim: aluminium
tubeless: yes
tyre type: clincher
tyre type: tubeless
weight: 1601g to 1700g
Lightness
ISM 4D
Maxtal
Efficiency & rigidity
Fore
Instant Drive 360
UST
UST Tubeless Ready
11 Storm
Isopulse
QRM+
QRM Auto
Safety & reliability
SUP
A favorite for everyday road training and racing, this versatile wheel system produces a lightweight, dynamic ride quality that now has the added benefits of our UST Road Tubeless technology. This patented system provides seamless integration between the wheel and our new Yksion Elite UST tubeless tires. It makes installation, removal and maintenance easier than ever, and you get all the benefits of tubeless, including less rolling resistance and a smoother, more controlled ride quality. Without tubes, you can run lower tire pressure with no risk of pinch flats, and the sealant helps prevent punctures. The rims are engineered using our ISM 4D technology and a wider design (19mm internal/23mm external). ISM stands for Inter Spoke Milling, a unique process that trims the thickness of the rim wall between the spokes to create a rim that’s lighter but still very durable. To reinforce the front wheel for disc brakes, we increased the spoke count to 24. The hub is compatible with a 12mm thru-axle, 15mm thru-axle or quick release. The rear wheel uses 24 straight-pull spokes laced to our lightweight, fast engagement Instant Drive 360 hub mechanism. Delivered in 12x142, it can be also converted to regular quick release. It’s compatible with Shimano or SRAM cassettes and can be converted to Campagnolo or SRAM XD-R.
Weight Front 770
Weight Pair 1670
Weight Rear 900
Weight Tyre 700x25 260
