Top aero performance on disc-brake road bikes is now more obtainable than ever. UST Tubeless Road technology makes this new wheel-tire system faster and smoother
Roll faster and smoother with a reduced risk of punctures.
With UST Road Tubeless, no tube means no friction. So you experience less rolling resistance and higher speeds. UST Road Tubeless lets you ride with lower tire pressure for smoother ride and a reduced risk of punctures. Our patented UST system offers a perfect union between tire and wheel, so installation, removal and maintenance are easy.
Added speed and efficiency for sprints and solo riding.
30mm deep aero rim profile . Ultra bladed straight pull spokes. Aerodynamic hubs.
Disc-brake technology gives you added braking control.
Engineered with a disc-brake specific rim profile. 12mm thru-axle hub front and rear, convertible to quick release. Compatible with Center Lock rotors and XD-R cassette.
Rims
Tyre: UST Tubeless and tubetype
Drilling: traditional
Material: S6000 Aluminum
Internal width: 17 mm
Joint: SUP
Valve hole diameter: 6.5 mm
Height: 30 mm
ETRTO size: 622x17TC ROAD
Spokes
Shape: straight pull, flat
Material: steel
Nipples: steel, ABS
Hubs
Front and rear bodies: aluminum
Tyre
Dimension: 25-622 (700x25c)
Versions
Color: Black only
Delivered with
User guide
UST valve and accessories
Tubeless rim tape
Intended use
Recommended tyre sizes: 25 to 32 mm
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
Safety & reliability
SUP
Rims
Material: S6000 Aluminum
Height: 30 mm
Joint: SUP
Drilling: traditional
Disc brake specific profile
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Internal width: 17 mm
ETRTO size: 622x17TC ROAD
Use with Mavic Tubeless Tape
Spokes
Material: steel
Shape: straight pull, flat
Nipples: steel, ABS
Count: 24 front and rear
Lacing: front and rear crossed 2
Hubs
Front and rear bodies: aluminum
Axle material: aluminum
Auto adjust sealed cartridge bearings (QRM Auto), front and rear
Freewheel: Instant Drive 360
Front: Quick release and 12x100 through axle compatible
Rear: Quick Release, 12x142 and 12x135 compatible
Tyre
Yksion Pro UST
UST Tubeless Ready
Front and Rear Tread: 11 Storm single compound
Casing: 127 TPI
Breaker: Polyamide, from bead to bead
Dimension: 25-622 (700x25c)
Versions
Color: Black only
Disc standard: Center Lock(R) only
Compatibility
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
Compatible Adapters and freewheel bodies
12 to 9mm front adapter for quick release ([V2680301] - Delivered with the wheel)
12mm front hub cap ([V2680501] - Delivered with the wheel)
12x142 rear axle adapters ([V2510701] - Delivered with the wheel)
12 to 9mm rear adapter for quick release ([V2510801] - Delivered with the wheel)
12x135 rear axle adapters ([V2510901])
ID360 Shimano / Sram Light freewheel body ([V3850101])
ID360 Campagnolo freewheel body ([V3440101])
ID360 XD-R freewheel body ([V2580101])
ID360 Shimano / Sram freewheel body ([V3430101] - Delivered on the wheel)
Delivered with
Mavic tyre sealant (rear wheel)
Tyre sealant syringe
Front QR adapters
Rear QR adapters for Instant Drive 360
UST valve and accessories
Tubeless rim tape
User guide
Intended use
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
Recommended tyre sizes: 25 to 32 mm
Max. Pressure: see indication on wheel and tyre. If they differ, use the lower of the 2
Filters
brake type: disc
field: rolling
rim profile: medium
rim: aluminium
tubeless: yes
tyre type: clincher
tyre type: tubeless
weight: >1700g
Efficiency & rigidity
Instant Drive 360
UST
UST Tubeless Ready
11 Storm
QRM
Safety & reliability
SUP

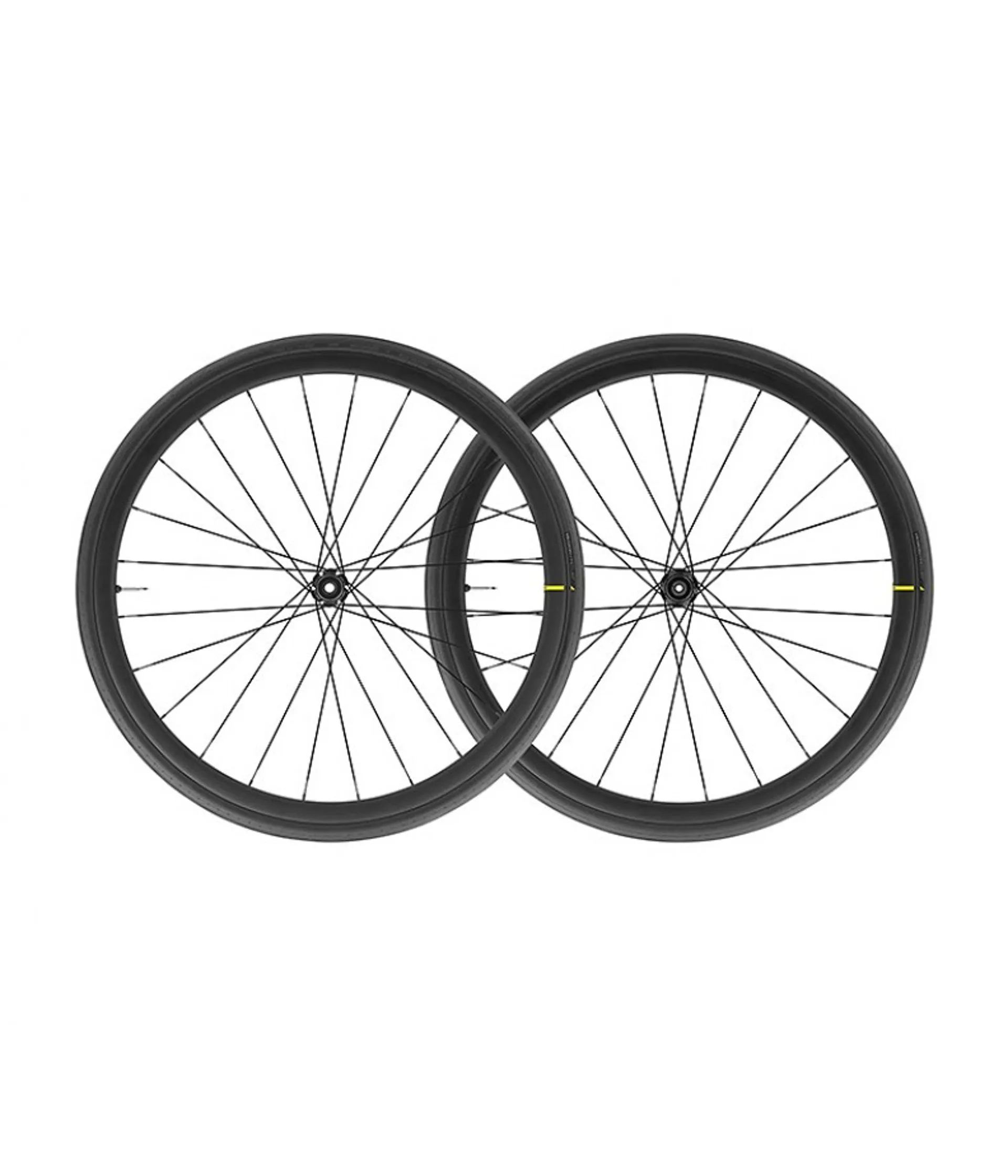

The Cosmic Elite is a perfect entry point into high-level race performance. This all-new UST Road Tubeless system delivers a smoother ride and improved puncture resistance while retaining a lightweight feel for climbing and accelerating. By removing the tube, we’ve also removed friction—so there’s less rolling resistance, which means it requires less energy to reach higher speeds. The UST system, including the sealant that makes the tires more resistant to punctures, is also 40g lighter than a traditional tube and tire system. Wind tunnel testing led us to create a 30mm deep rim that optimizes aero performance and improves stability in crosswinds. The alloy rim benefits from our unrivaled experience creating light yet strong rim extrusions. We do this by carefully tuning the thickness of the rim wall to hit the sweet spot between stiffness, strength and weight. It’s also engineered specifically for disc brakes, with steel-bladed straight-pull spokes that are stronger than traditional J-bend spokes, which are connected to our strongest hub platform running on smooth QRM bearings. Our extensive wind tunnel testing led us to create a 30mm deep rim that optimizes aero performance and improves stability in crosswinds. The thickness of the rim wall is carefully tuned to hit the sweet spot between stiffness, strength and weight. Pedaling torque is further imporved with our ID360 freewheel system—light, smooth, stiff and easy to service. This hub easily converts from Shimano/SRAM to Campagnolo or XD cassette.
Weight Front 845
Weight Pair 1870
Weight Rear 1015
