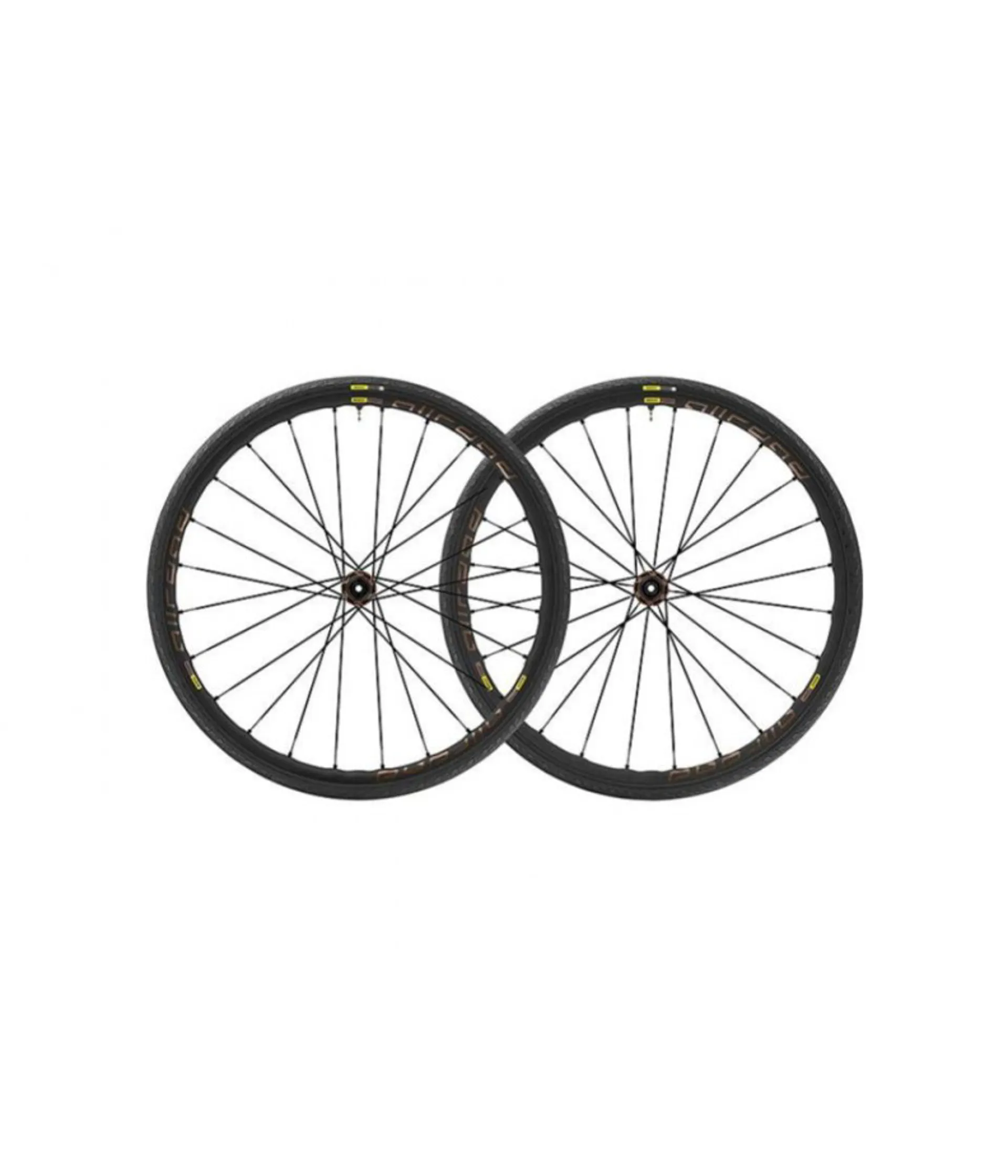

Mavic Allroad Elite UST Disc Wheelset Inc Tyres
Mavic Allroad Elite UST Disc Wheelset Inc Tyres
Mavic

Mavic Allroad Elite UST Disc Wheelset Inc Tyres

£499.00 £675.00 26% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.
Fast & Free Click & Collect
All bikes fully safety checked and inspected
30 days free insurance with all bikes
Free 6 week check up
Test rides available
Hassle Free Returns

Mavic Allroad Elite UST Disc Wheelset Inc Tyres

Season:2020

Brand:Mavic

Code:P85721

KEY BENEFITS
Ride smoother and faster on rough roads with a reduced risk of punctures.
Super-wide (22mm internal) UST rims and integrated tubeless tires reduce rolling resistance.
UST Road Tubeless lets you run lower tire pressure for comfort and control on rough roads.
Choose either 30mm or 40mm Yksion Pro Allroad UST tires.
Climb with less effort, accelerate quicker.
Superlight ISM 4D rims.
Light and strong steel spokes.
Tough and light new Instant Drive 360 freewheel system.
Powerful, reliable disc brakes for more control on rough roads.
24 spokes front and rear for optimized brake torque distribution.
Front hub convertible from 12mm to 15mm thru-axle to quick release.
Rear hub convertible from 12x142 thru-axle to quick release.
Center Lock brake compatible, also XD Road with an optional driver body.

SPECIFICATIONS
Compatibility
Front axle: 12mm thru axle, easily convertible to quick release with included adapters. Convertible to 15mm with complete axle replacement
Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
Compatible Adapters and freewheel bodies
ID360 Shimano / Sram freewheel body (V3430101 - Delivered on the wheel)
ID360 XD freewheel body (V2580101)
ID360 Campagnolo freewheel body (V3440101)
ID360 Shimano / Sram Light freewheel body (V3850101)
12x135 rear axle adapters (V2510901)
12 to 9mm rear adapter for quick release (V2510801 - Delivered with the wheel)
12x142 rear axle adapters (V2510701 - Delivered with the wheel)
15mm axle (Center lock: V2252401, 6 Bolts: V2252301) + 15mm fork rest (B4104401)
12 to 9mm front adapter for quick release (V2680301 - Delivered with the wheel)

Weight
Pair without tyre: 1720 grams
Front without tyre: 795 grams
Rear without tyre: 925 grams

Hubs
Front bearings : adjustable sealed cartridge bearings (QRM+), Rear bearings : auto adjust sealed cartridge bearings (QRM Auto)
Front: Quick release, 12x100 and 15x100 through axle compatible
Rear: Quick Release, 12x142 and 12x135 compatible
Freewheel: Instant Drive 360
Front and rear bodies: aluminum
Axle material: aluminum

Intended Use
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
Max. Pressure: 30mm 5.8 bars - 85 PSI / 35mm 5.1 bars - 74 PSI / 40mm 4.5 bars - 65 PSI
Recommended tyre sizes: 28 to 62 mm (1.1" to 2.5")

Rims
ETRTO size: 622x22TSS ROAD
Internal width: 22 mm
Weight reduction: ISM 4D
Height: 21 mm
Disc brake specific profile
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Drilling: Fore
Joint: SUP
Material: Maxtal

Spokes
Material: steel
Shape: straight pull, flat
Lacing: front crossed 2, rear Isopulse
Nipples: Fore integrated aluminum
Count: 24 front and rear

Tyre
Dimensions: 30-622 or 35-622 or 40-622 (700x30c or 700x35c or 700x40c)
Yksion Elite Allroad or Yksion Elite Allroad XL
UST Tubeless Ready
Breaker: Polyamide, from bead to bead
Casing: 120 TPI
Front and Rear Tread: Single Compound
