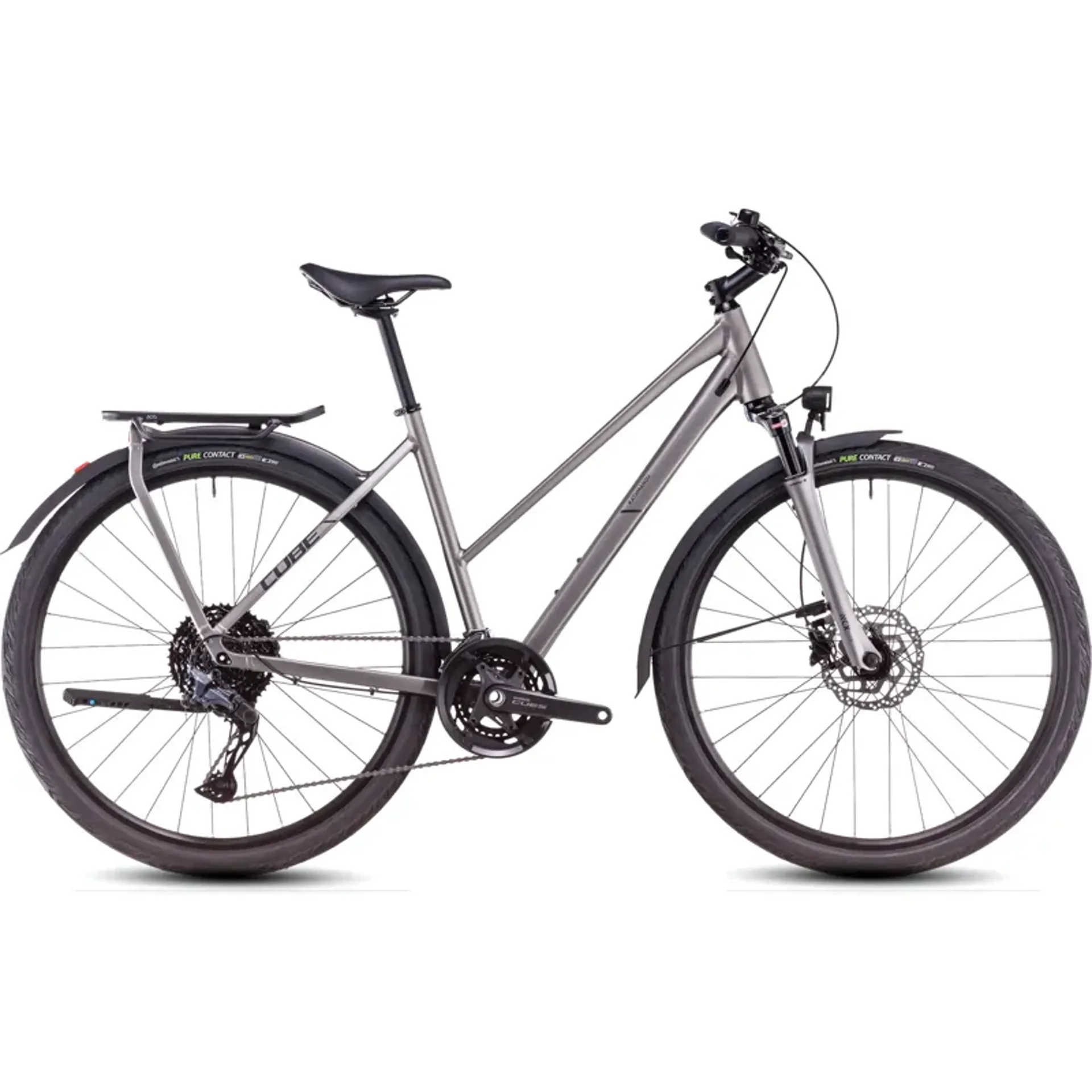

Cube Kathmandu EXC Trapeze Frame Hybrid Bike in Grey/Black

£1,499.00

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Fast & Free Click & Collect
All bikes fully safety checked and inspected
30 days free insurance with all bikes
Free 6 week check up
Test rides available
Hassle Free Returns

Returns & Replacements

Parts, Accessories and Clothing can be returned within 30 days of purchase instore or online.

Bikes + Frames can be returned within 30 days if ordered online.
Goods must be in original undamaged packaging and packed to prevent damage during transit, please contact us if you require advice on packaging.
Goods must not have been fitted or used and be suitable for resale
We recommend using a recorded postal service.
Online purchases: We are not responsible for the cost of returning items unless we sent you the wrong item or the item was damaged or faulty. In which case we will refund reasonable postal costs, excluding special delivery, premium postal services or international postage.
Instore purchases: All instore orders must be returned and collected from the store they were ordered from.
Cyclo Monster Limited is not responsible for compensating for any loss, time or costs in undertaking a return for any reason including warranty returns.
All return requests should be submitted in writing or via email.
Special orders items (i.e not instock at time of order and ordered in specifically for a customer) that are cancelled after order may incure a 15% restocking fee or loss of deposit.
We do not accept returns on custom bike builds, bikes that have been ridden or any other custom items.
NOTE: Please do not tape up or attach labels direct to the retail packaging, please wrap the product first.

Please complete our returns form if you need to return an item

Cube Kathmandu EXC Trapeze Frame Hybrid Bike in Grey/Black

Season:2025

Brand:Cube

Code:862401GRY

Out in the world.

Attention to detail is a Cube obsession. Its Integrated Carrier 3.0 is designed to work seamlessly with their ACID mudguard. They've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. Cube also equipped the rear end with a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to keep your gear shifts smooth with minimal maintenance, they reckon they've thought of everything. Just don't forget your toothbrush.

Technical Information

Frame
Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted
Size
Trapeze: 46cm, 50cm, 54cm
Suspension
Suspension fork, SR Suntour NCX E RL Air T, 63mm, Remote Lockout
Brake System
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180)
Rear Derailleur
Shimano Cues RD-U8020-SGS, 11-Speed
Shifters
Shimano Cues SL-U6000, Rapidfire-Plus
Front Derailleur
Shimano Cues FD-U6010, Top-Swing, 31.8mm
Bottom Bracket
Shimano BB-MT501, 68mm BSA
Crankset
Shimano Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard
Cassette
Shimano Cues CS-LG700, 11-45T
Chain
KMC xGlide
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 680mm
Grips
ACID Travel Comfort
Rims
CUBE EX25, 32H, Disc, Tubeless Ready
Front Hub
Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-TC500-HM, 12mm Through Axle, Centerlock
Tyres
Continental Pure Contact, 47x622, Foldable
Saddle
ACID Sequence Pro 160
Seat Post
CUBE Performance Post, 27.2mm
Pedals
CUBE PP MTB
Front Light
CUBE IQ-XS-Friendly N plus
Rear Light
ACID Mudguard Rear Light PRO-D, 6V, AC
Kickstand
ACID FM Pure Kickstand
Mudguards
ACID 56 Integrated Carrier 3.0
Bell
Easy Bell
Carrier
ACID Integrated Carrier 3.0, CUBE Adapter Compatible
Colour
Grey'n'black
Weight
15.9 kg
