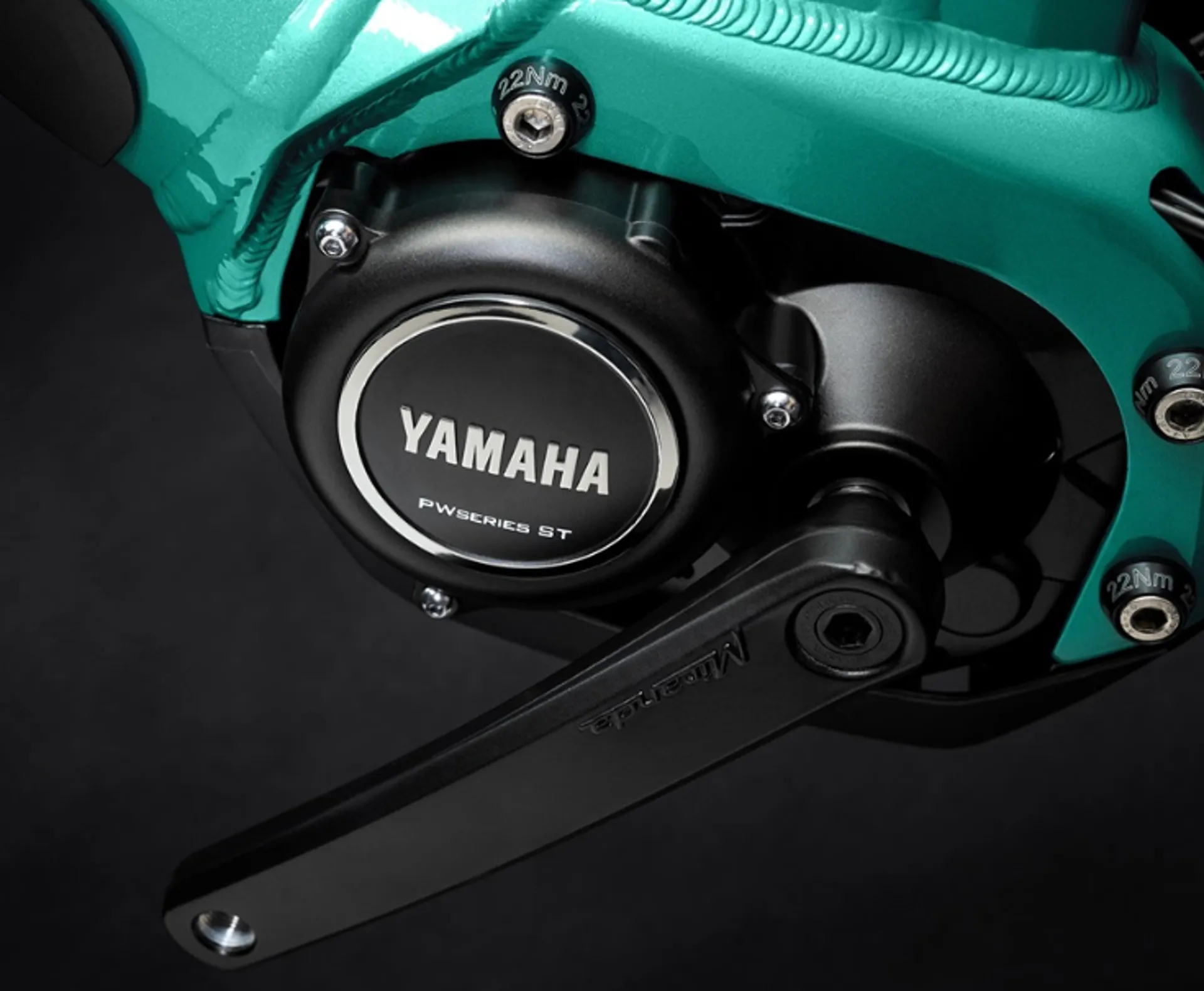

ENGINEYamaha, PW-ST System, 250 W, 70 Nm, 25 km/h

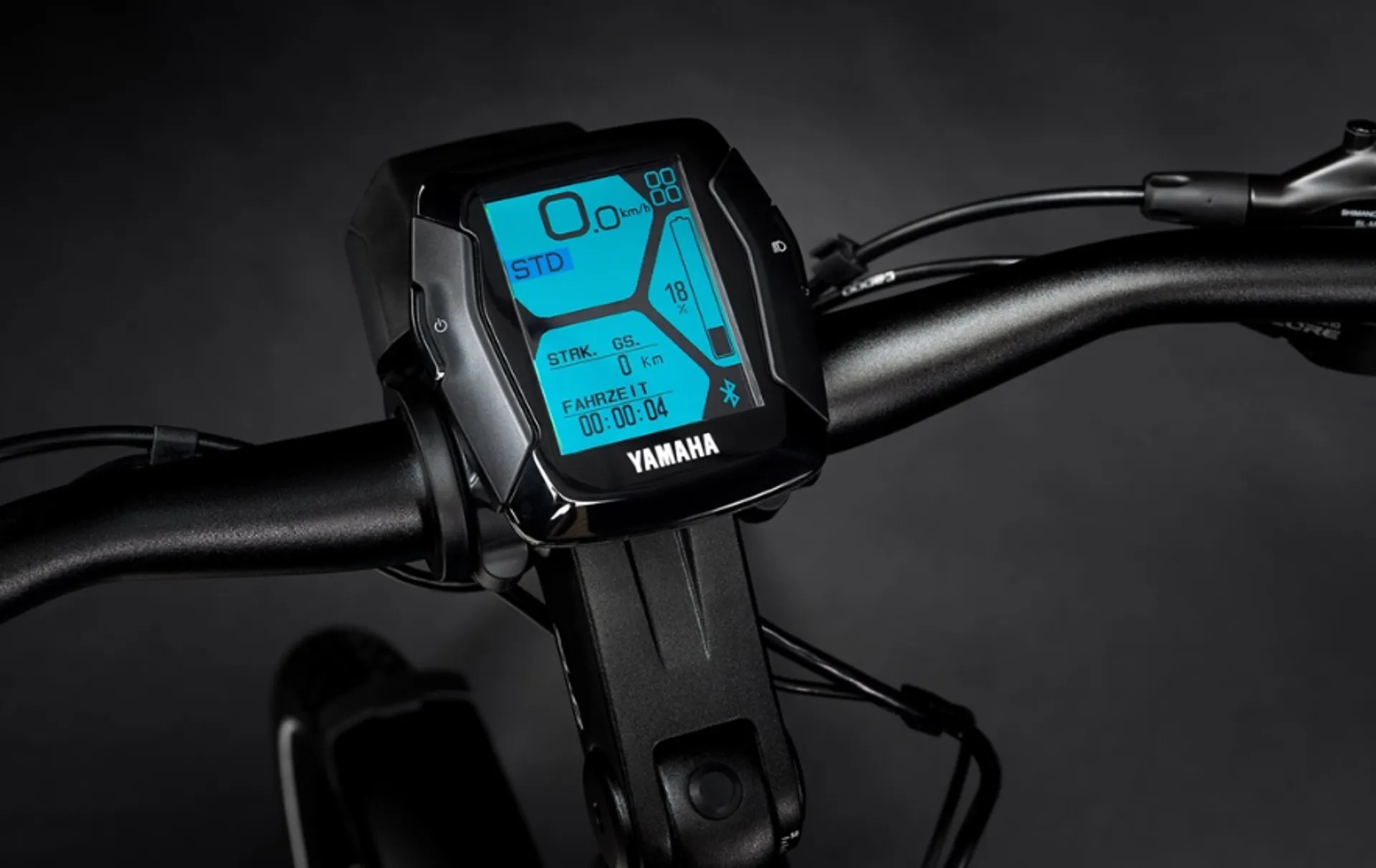

DISPLAYYamaha, Multi Switch, 2.8" TFT, 16 functions
BATTERYInTube, 630 Wh

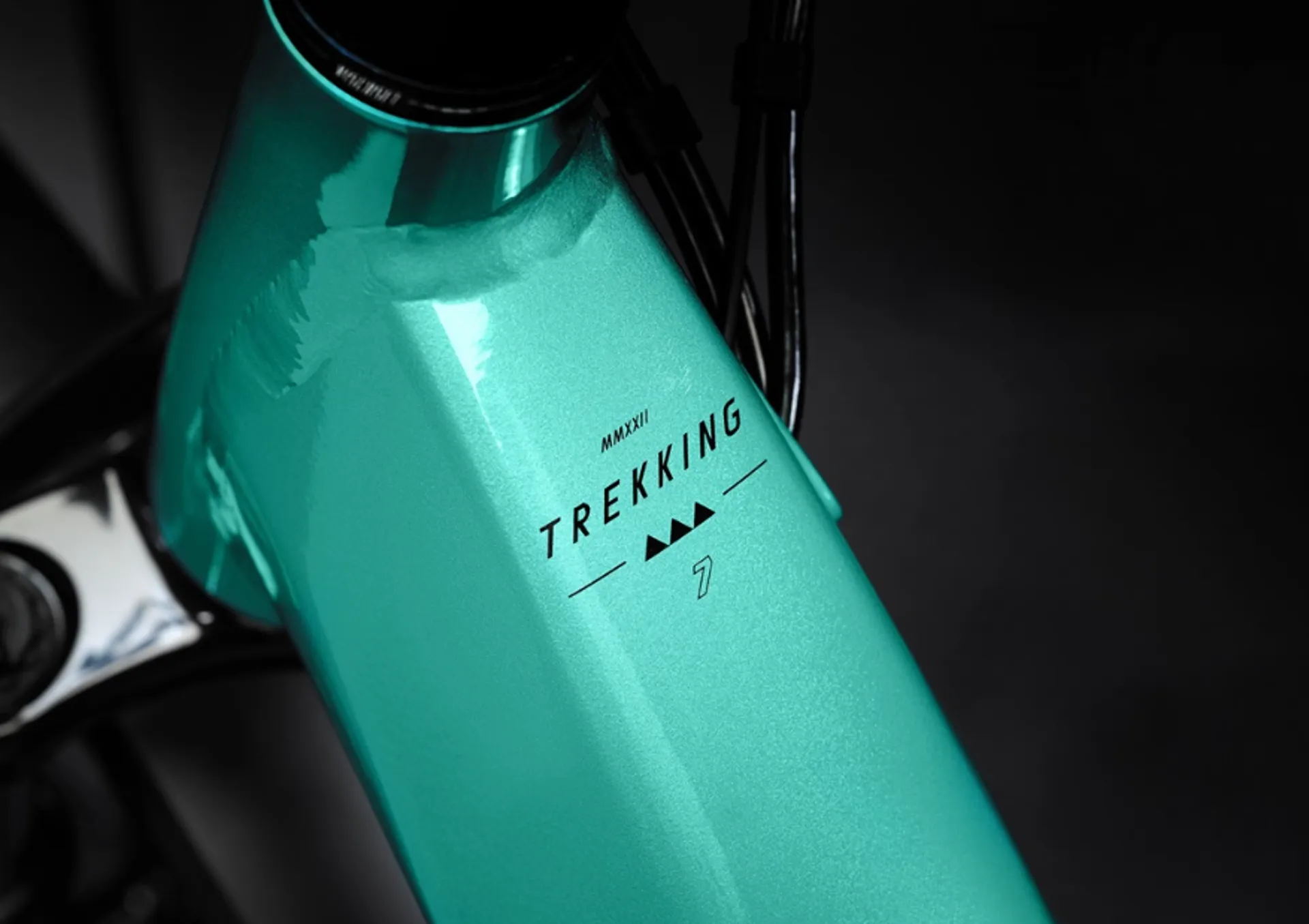

FRAME FAMILYHaibike, Aluminium 6061, Yamaha InTube 630, HD Interface, Aluminium 6061
FORKSR Suntour, Mobie A32, Steel spring, 75 mm travel, Aluminium steerer tube 1 1/8", 15 x 100mm thru-axle
CRANK ARMHaibike, Forged, Aluminium

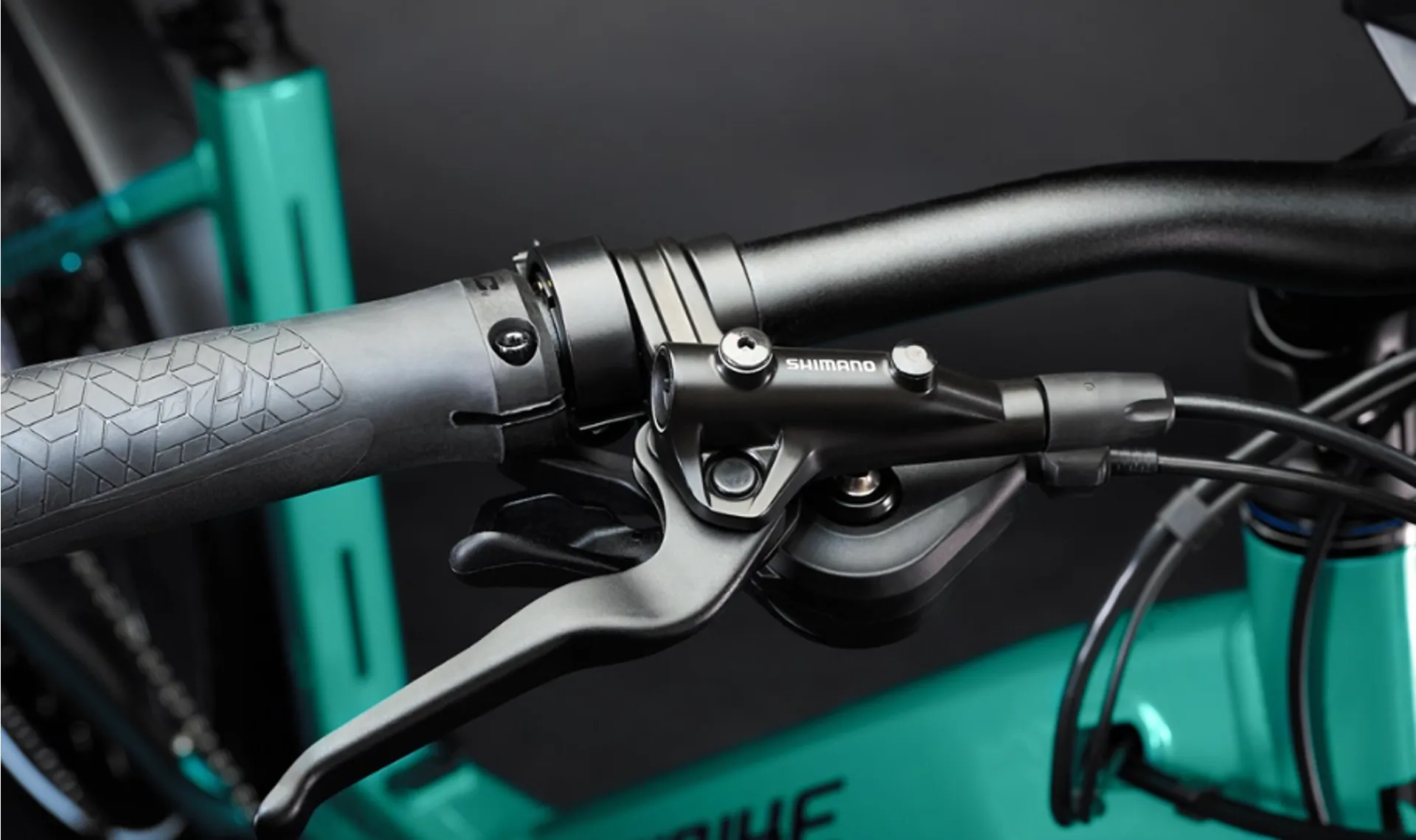

BRAKE (FRONT)Shimano, MT410, Hydraulic disc brakes
BRAKE (REAR)Shimano, MT410, Hydraulic disc brakes
TUBEDunlop valve
RIMSchürmann, Yak25, With Eyelets, Double Wall, Aluminium
CLAMPING RINGquick release, Quick release, 34.9 mm
REAR DERAILLEURShimano, Deore M5100
SHIFT LEVERShimano, Deore M5100, Trigger switch
BOTTOM BRACKETintegrated in the motor
SPROCKETShimano, M5100, 11 - 51 teeth
CHAINKMC, e11S
CHAINRINGSteel, 38 teeth
BRAKE LEVERShimano, MT402, Aluminium
BRAKE DISC (FRONT)Shimano, RT30-M, 180 mm
BRAKE DISC (REAR)Shimano, RT30-M, 180 mm
TYREWTB, Groov-E, 61-584, 27.5 x 2.4 inch
FRONT WHEEL HUBShimano, MT400, Centerlock
REAR WHEEL HUBShimano, Shimano Acera T3000
SPOKESSapim, Leader
HANDLEBARErgoriser, oversize, 720 mm
GRIPSXLC, Comfort bo3
STEMaluminium, angle ajustable, A-head, 31.8 mm
HEADSETCane Creek, Viscoset, Aluminium
SADDLEXLC, Trekking
SEAT POSTXLC, Aluminium, Patent, 31.6 mm
PEDALSVP, E461, Aluminium, with Reflector

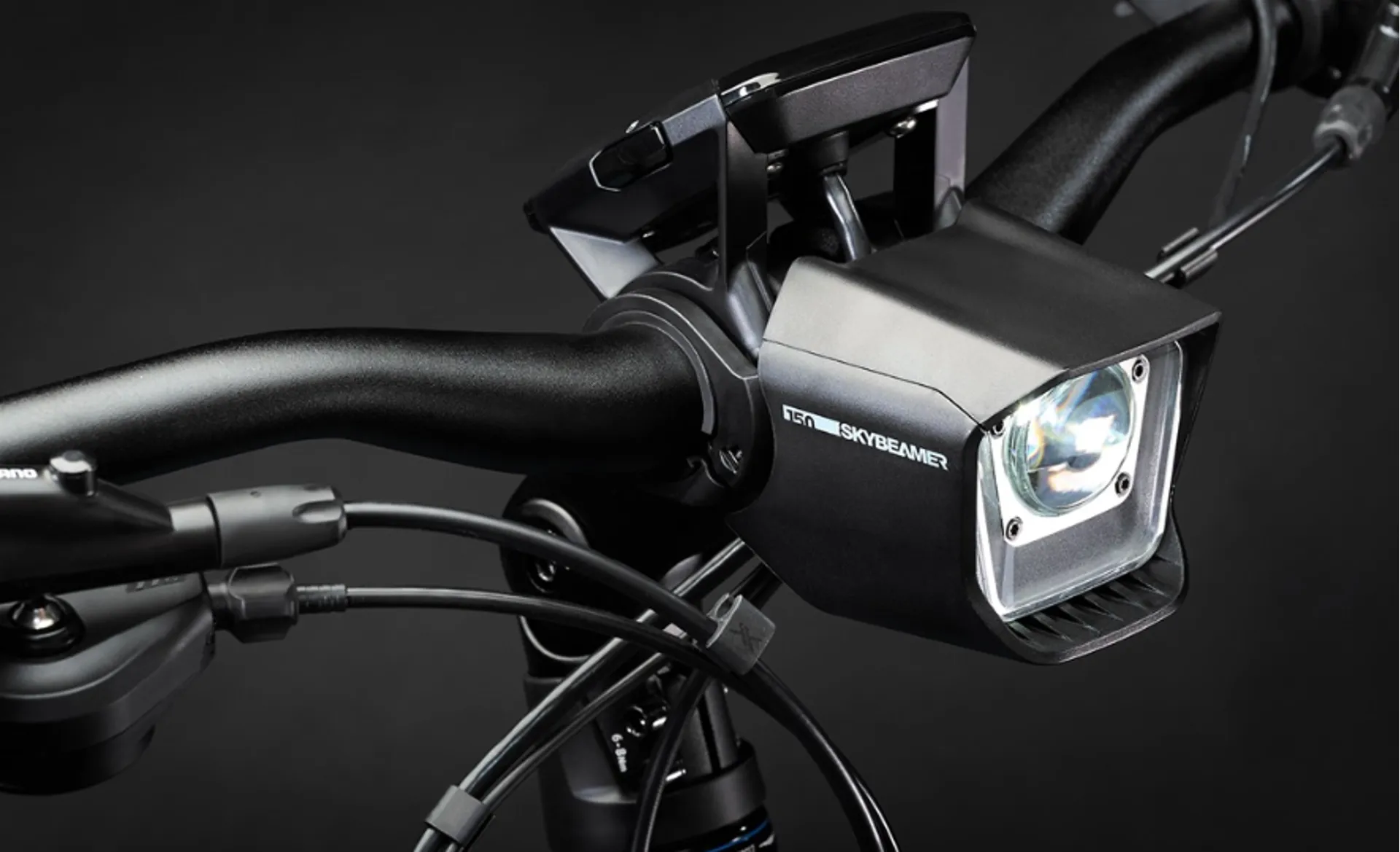

HEADLIGHTHaibike, Skybeamer 150, 50 lm
REAR LIGHTAXA, Juno Ebike
DYNAMOvia system battery

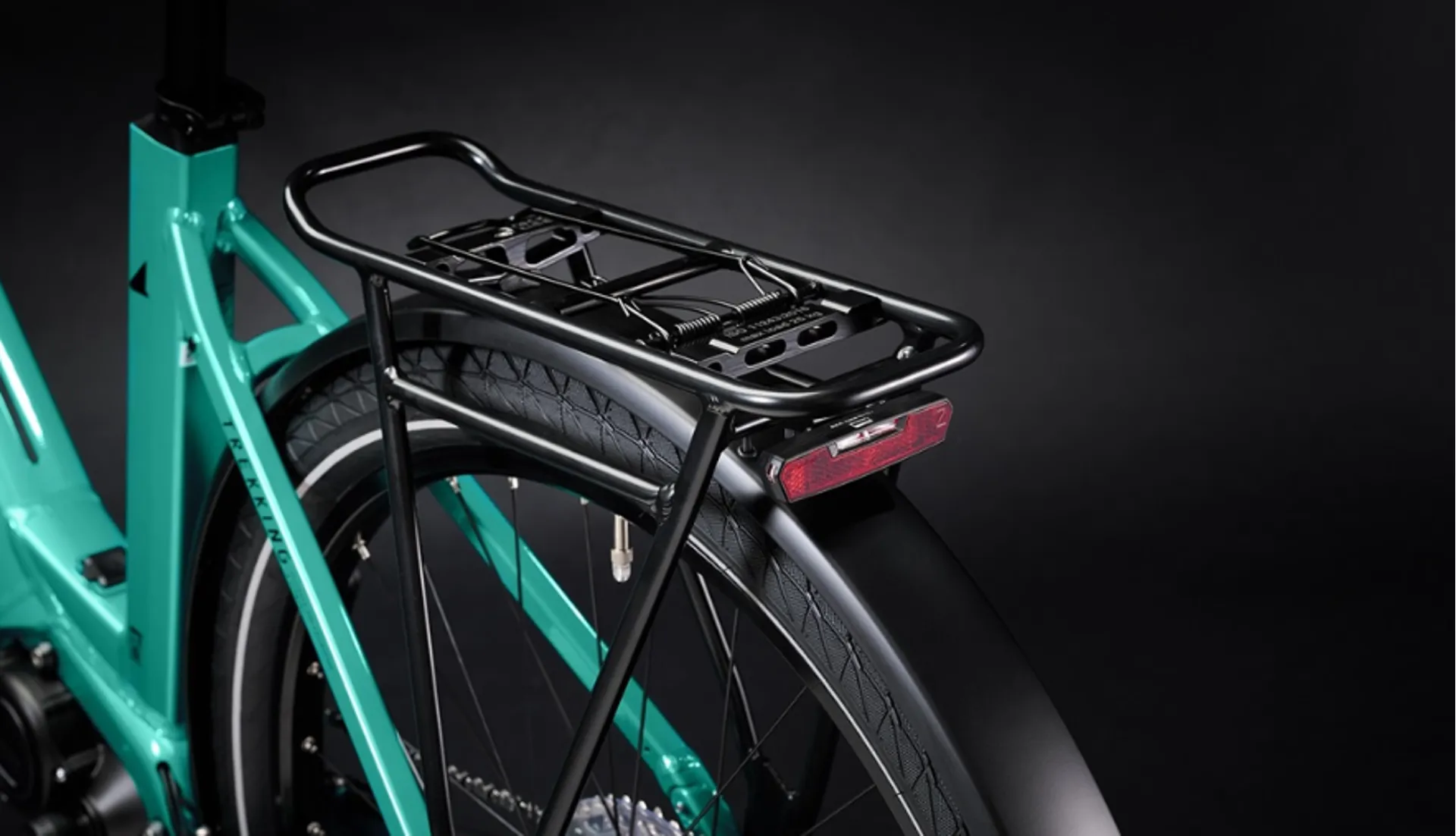

CARRIERRacktime, Tria
FENDERSEurofender, Tempo, ChromoplasticsSKS, Chromoplastics
STANDUrsus, Mooi, Rear stand
PERMITTED TOTAL WEIGHT130.0 kg
