The Tourer range, the T Type is designed to be versatile and completely meet the needs of weekend trekkers and city rides, and then go a little bit further.
E - Omnia T-Type can handle anything from smooth asphalt to light gravel. The tourer range is the first choice for fitness, commuting, or just riding for pleasure

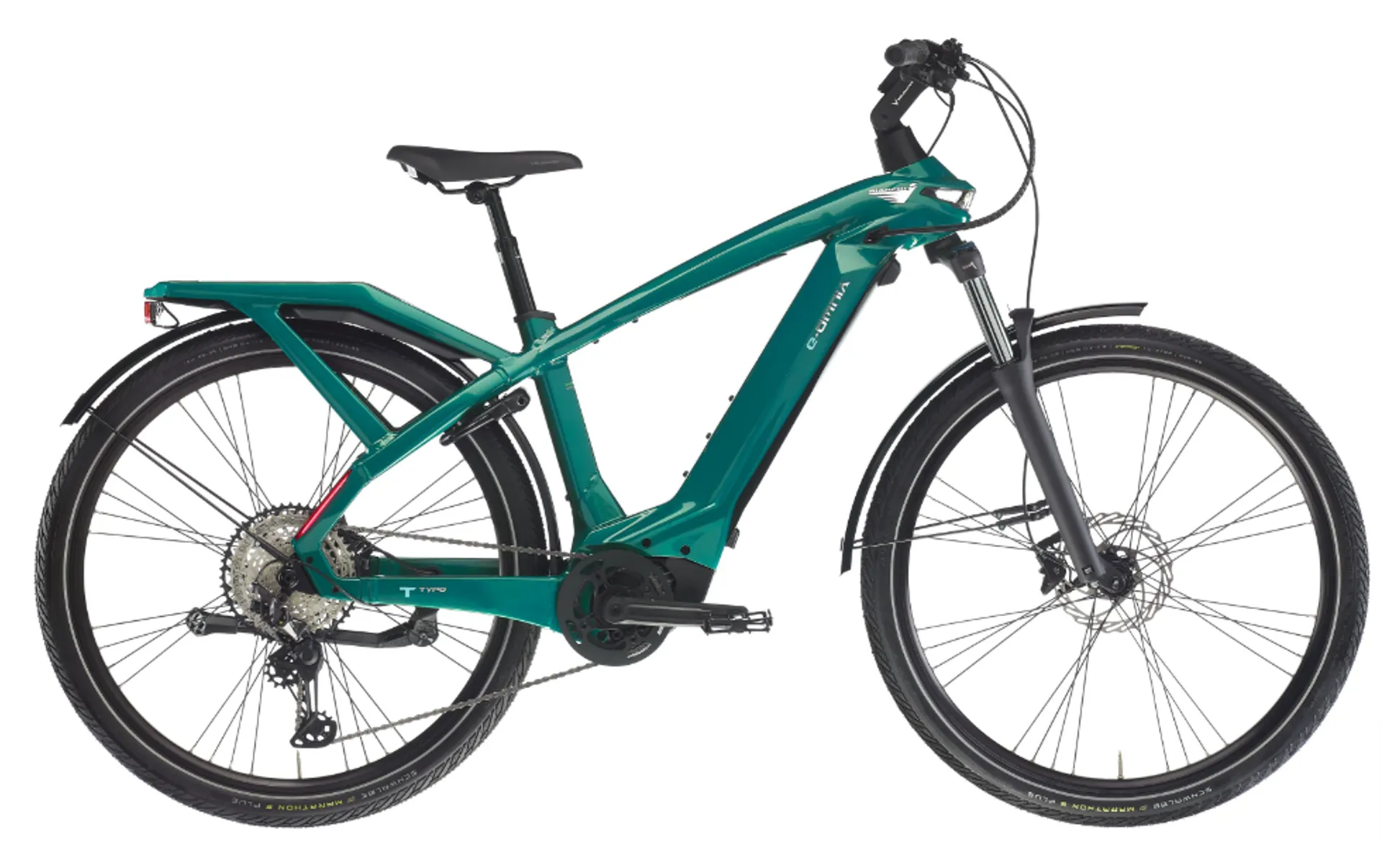

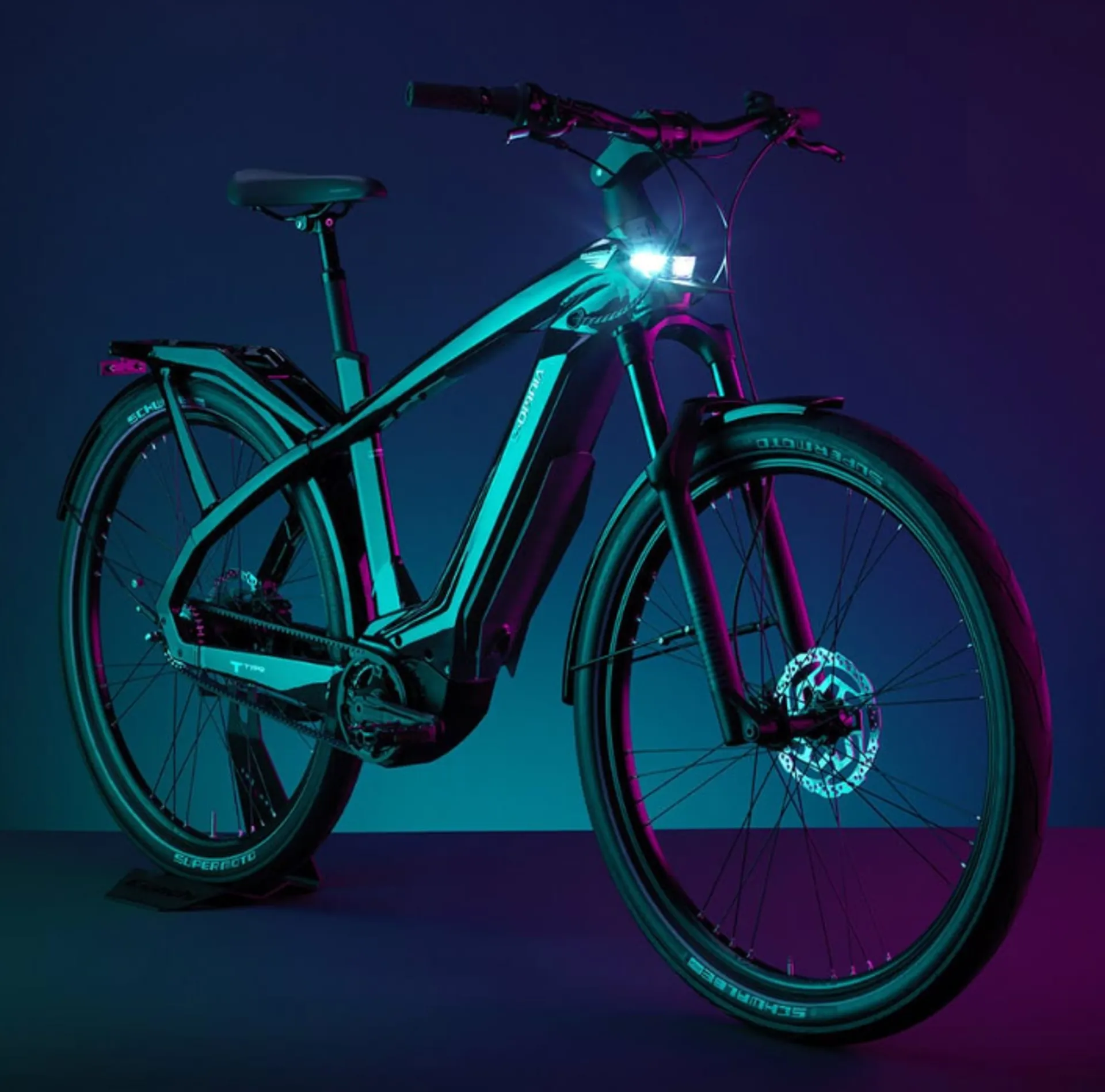

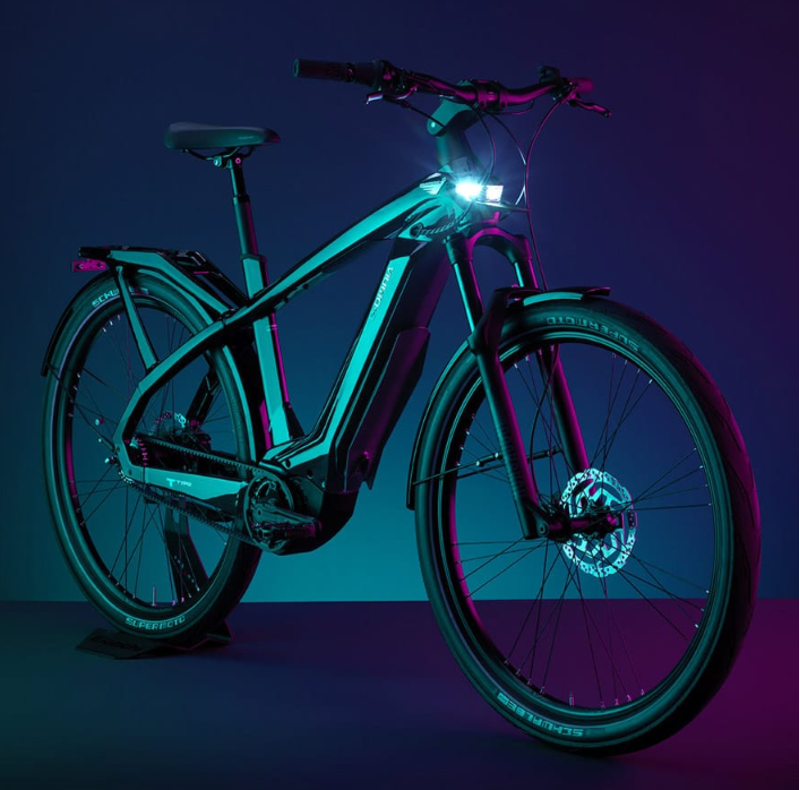

The e-Omnia T-Type is a utilitarian e-bike designed to be the first choice for fitness, commuting, or just riding for pleasure.
With front suspension and some intelligent design features, it can handle anything from smooth asphalt to light gravel.

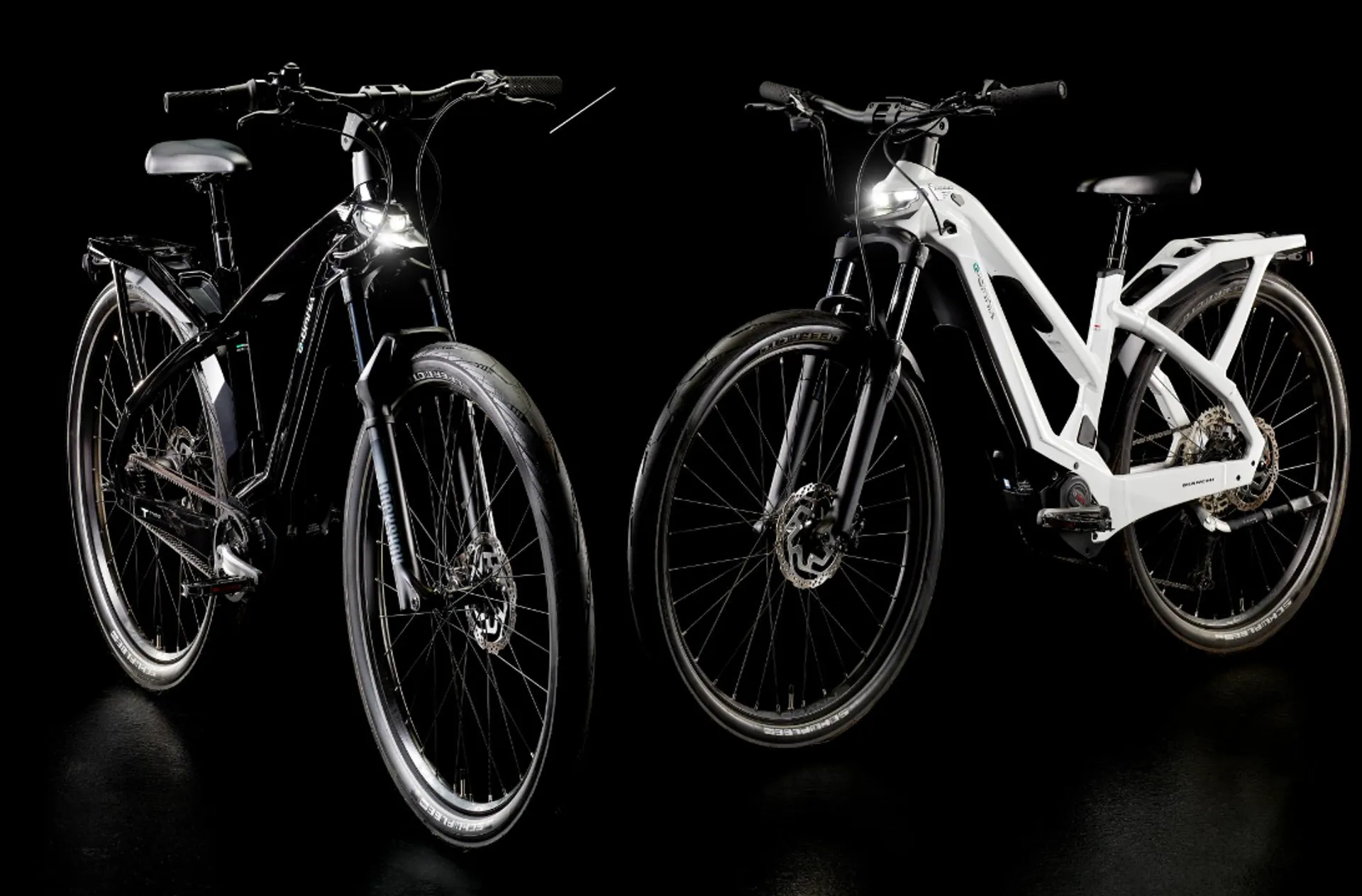

The T-Type is avaiable with standar frame and also with step-trhough frame, with both frames engineered using gravity casting technology for frame stiffness and a sleek finish. Intelligently integrated mudguards, lights and seat post clamp are exactly as they are on the e-Omnia FT-Type. Living up to its utilitarian status, the T-Type comes supplied with the same frame-welded rear carrier system as the FT-Type as well.
The Bosch motor unit comes with a couple of extra features, with an integrated display in the stem, as well as the choice to run a belt drive with Shimano Nexus internal hub. The belt drive lowers maintenance and cuts out noise, two key considerations for a utility e-bike.

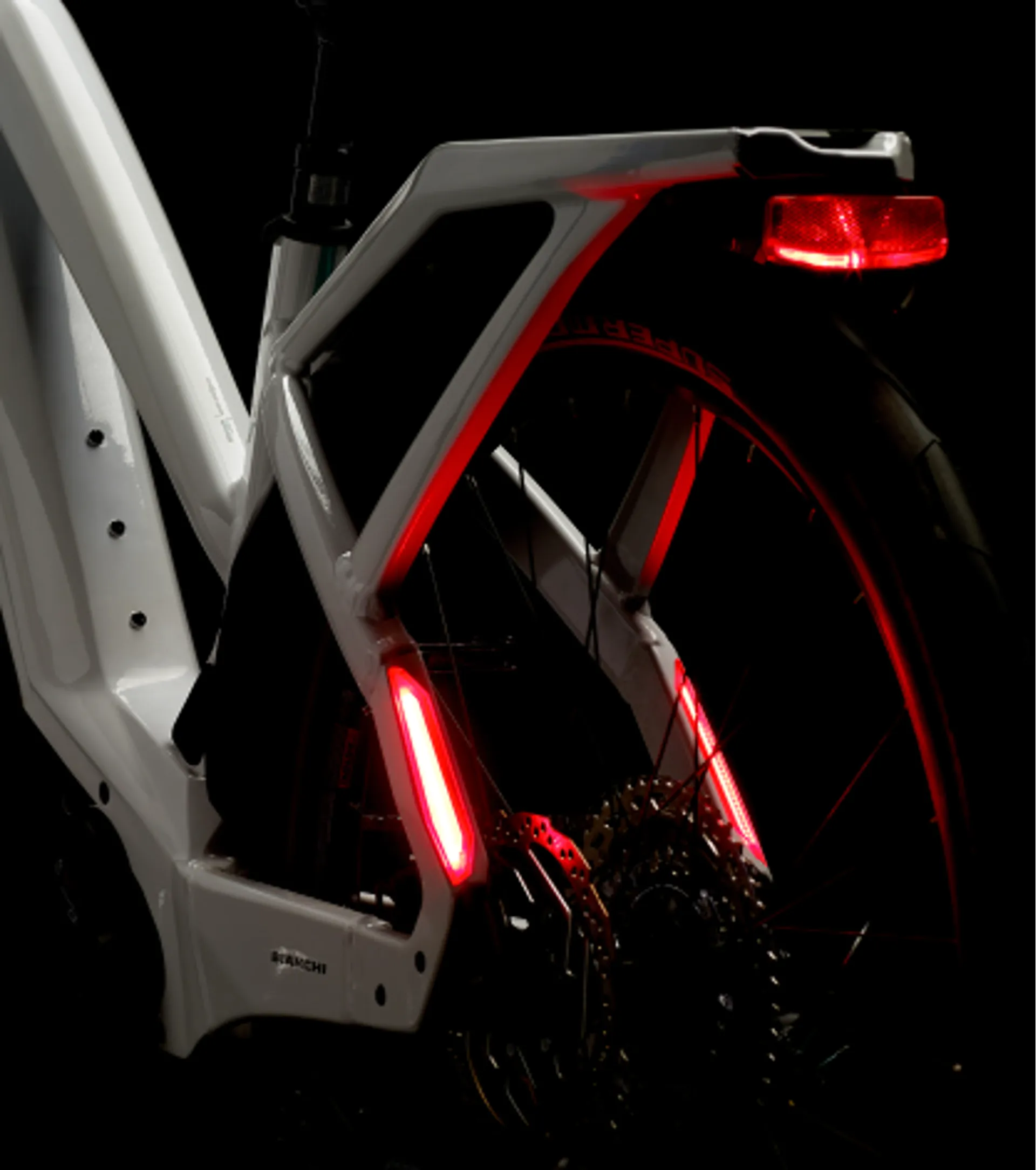

The e-Omnia platform harnesses pioneering technology to improve the user’s experience. Integrated lights at the front, sider and rear are a key feature of e-Omnia T-Type, allowing the rider to see and be seen everywhere. The integrated front and rear lights put out 40 Lux, for an impressive visibility-range of 100 metres, and visibility to others at 500 metres.
MOTOR - BOSCH PERFORMANCE LINE CX 250W 85NM
BATTERY - BOSCH POWERTUBE 500WH
FRAME - e-Omnia T Type ALU, sizes: MD, LG, XL (43,48,53), 12x148mm Thru-axle, Ready to fix the chainguard, Post mount 160 disc brake type, Ready to fix rear kyckstand, custom rearcarrier integrated in the frame design, BatteryWall Darfon OmniaX/T/FX, Set dropout
FORK - Suntour XCM34-Boost NLO DS 15AH2-110 29" travel 120mm
HEADSET - Fsa NO.55R/558 1.5"
SHIFTERS - Shimano Deore SL-M4100-R, 10sp
REAR DERAILLEUR - Shimano RD-M5120, DEORE, SGS 10sp, SHADOW DESIGN
CRANKSET - FSA Die cast alloy, crank lenght 170mm ISIS black, MegaTooth 38T
BB - Included w/motor unit
CHAIN - Kmc e10S NPBK Anti-Rust 1/2" x 11/128" EPT
CASSETTE - Shimano DEORE CS-M4100-10, 11-42T
BRAKES - Shimano BR-MT200, resin pad
ROTOR - Shimano SM-RT10, diam. 180mm
RIMS - VELOMANN EBIKE MAXX 29" - 622X25C
REARHUB - SHIMANO FH-MT400-B CENTER LOCK, BOOST 12X148MM
TYRE - WTB Slick 2.2 29" 54/54 27tpi
STEM - VELOMANN HI-RISE STEM, EXT: 90MM-43/48CM, 110MM-53CM
HANDLEBAR - VELOMANN Rise, width 740mm, diam. 31,8mm, 9° backsweep, 15mm rise
GRIPS - HERRMANS LUNA LOCK
SEATPOST - Velomann, lenght 350mm-15/17'' and 400mm-19/21'', diam.31,6mm, 0mm seatback, AL2014 shaft
SADDLE - Velomann 8016HR0, size 270x162mm
MUDGUARDS - BIANCHI CUSTOM MUDGUARDS
KICKSTAND - VELOMANN R78 KING EVO REAR MAX 35KG
REAR CARRIER - custom rear carrier integrated into the frame design
FRONTLIGHT - INTEGRATED CUSTOM FRONT AND SIDE LIGHT MADE W/SPANNINGA
REARLIGHT - Spanninga integrated rear lights
