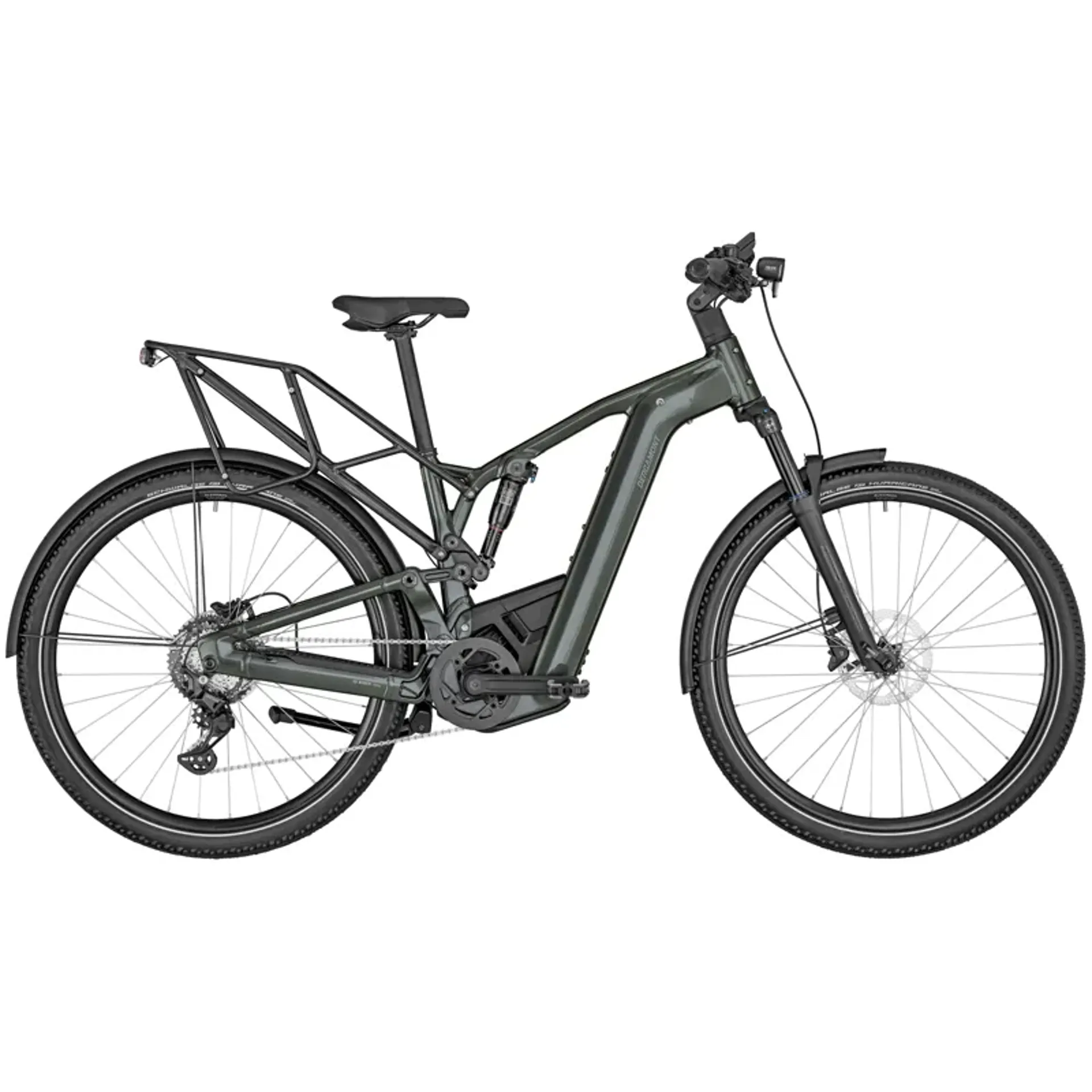

Bergamont E-Horizon FS Expert

Season:2024

Brand:Bergamont

Code:290951

Premium SUV model, based on a newly developed 130/120 mm chassis featuring the latest Bosch drive unit and 625 Wh PowerTube battery technology, it navigates confidently through the urban jungle and reliably takes you to more rural areas. The maximum system weight of 160 kg, a rear carrier load capacity of 20 kg and front rack compatibility, offers you maximum flexibility on every tour

Technical Information

Frame28", ultra lite AL-6061 tubing, PowerTube battery, 120 mm rear travel

ForkSuntour Mobie 35 Air, LOR DS, 130 mm, 15x110 mm axle

Rear ShockRock Shox Deluxe Select Plus RT Air, length x stroke 185x55, hardware: 45x8mm

Drive UnitBosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h

BatteryBosch PowerTube, 36 V Li Ion, 625 Wh

DisplayBosch LED Remote with Kiox 300 display

ChargerBosch Standard Charger, 4A

Rear DerailleurShimano Deore Linkglide, RD-M5130, Shadow Plus

ShiftersShimano Deore Linkglide, SL-M5130, 1x10-speed, rapidfire plus-shifter

CranksetFSA CK-320, 38t

BB-SetBosch, Isis

ChainShimano Linkglide, CN-LG500

CassetteShimano Linkglide, CS-LG600-10, 11-43t

Brake LeversShimano BL-M4100, hydraulic disc brake

BrakesShimano BR-MT410, hydraulic disc brake

RotorShimano SM-RT30, 180 mm

HandlebarBGM Pro, riserbar, backsweep: 15°, rise: 5 mm

H'stemSatori Python, adjustable

SeatpostBGM Pro

SeatSyncros Capilano Trekking Gel

HeadsetAcros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock

Hub (Front)Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle

Hub (Rear)Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle

SpokesSapim Leader

RimsAlex EXR25, disc, eyelets, width: 25 mm

Front TireSchwalbe Hurricane, Addix, reflective stripe, 57-622Tube: Schwalbe AV19

Rear TireSchwalbe Hurricane, Addix, reflective stripe, 57-622Tube: Schwalbe AV19

LightsFront: B&M IQ-XS, 80 Lux, LEDRear: B&M Toplight 2 C, LED

RackRacktime / BGM E-Adventure carrier, SnapIt 2.0 System

PedalsTrekking alloy

AccessoriesKickstand: Syncros

Approx weight in KG29,5

Colorshiny greenish grey

FenderCurana Apollo, with stainless stays

Frame sizeS/M/L/XL

GripsBGM Comfort, Ergo, double density, clamp version

Max. System Weight160,0 kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.

Sizing Information

mminches

		S	M	L	XL
A	BB center to top of seattube	410 mm	440 mm	470 mm	505 mm
B	top tube parallel	587 mm	598 mm	618 mm	639 mm
B*	top tube horizontal	585 mm	605 mm	630 mm	655 mm
C	chainstay	490 mm	490 mm	490 mm	490 mm
D	headtube length	120 mm	120 mm	130 mm	145 mm
E	head angle	67,0 °	67,0 °	67,0 °	67,0 °
F	seat angle	76,0 °	76,0 °	76,0 °	76,0 °
H	BB offset	-39 mm	-39 mm	-39 mm	-39 mm
K	wheelbase	1.217 mm	1.237 mm	1.263 mm	1.290 mm
L	standover height	799 mm	816 mm	834 mm	862 mm
M	stack	636 mm	636 mm	645 mm	659 mm
N	reach	420 mm	440 mm	463 mm	484 mm
	fork length	550 mm	550 mm	550 mm	550 mm
	fork rake	44 mm	44 mm	44 mm	44 mm

G	seatpost diameter	31,6 mm
I	shock dimension	185x55 mm
	headset dimension	ZS56/ZS56
	BB standard	Bosch Gen4
	hanger type	BGM-H054
	max. rotor size	200 mm
