Bosch Kiox 300 Smart System Retrofit Kit

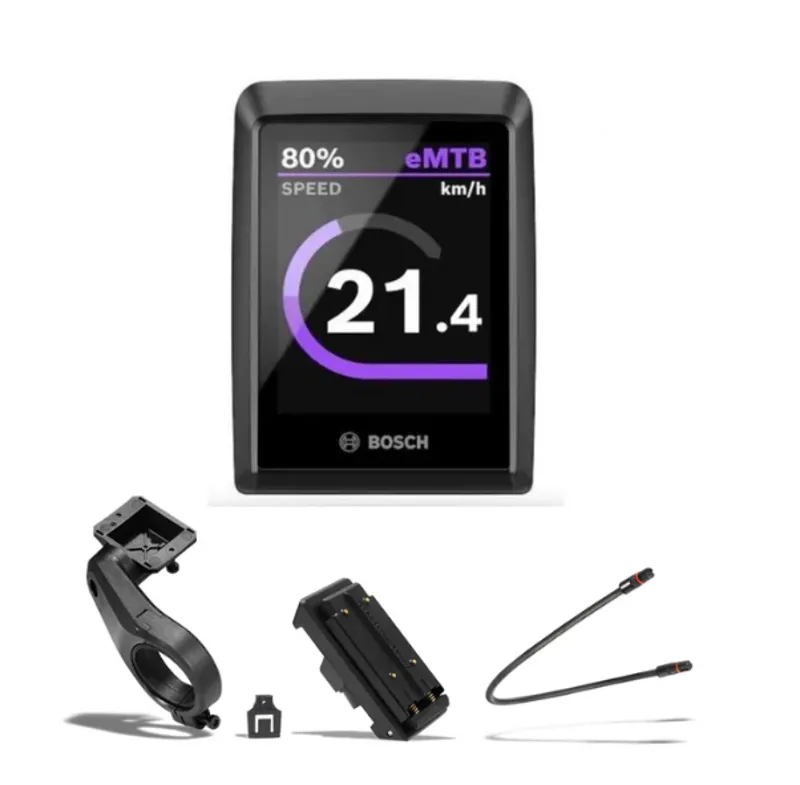

With the Bosch Kiox 300 retrofit kit, you can upgrade your Bosch Smart System e-bike with a practical and informative display. This comprehensive kit includes all the necessary parts for a successful conversion:
- Bosch Kiox 300 Display

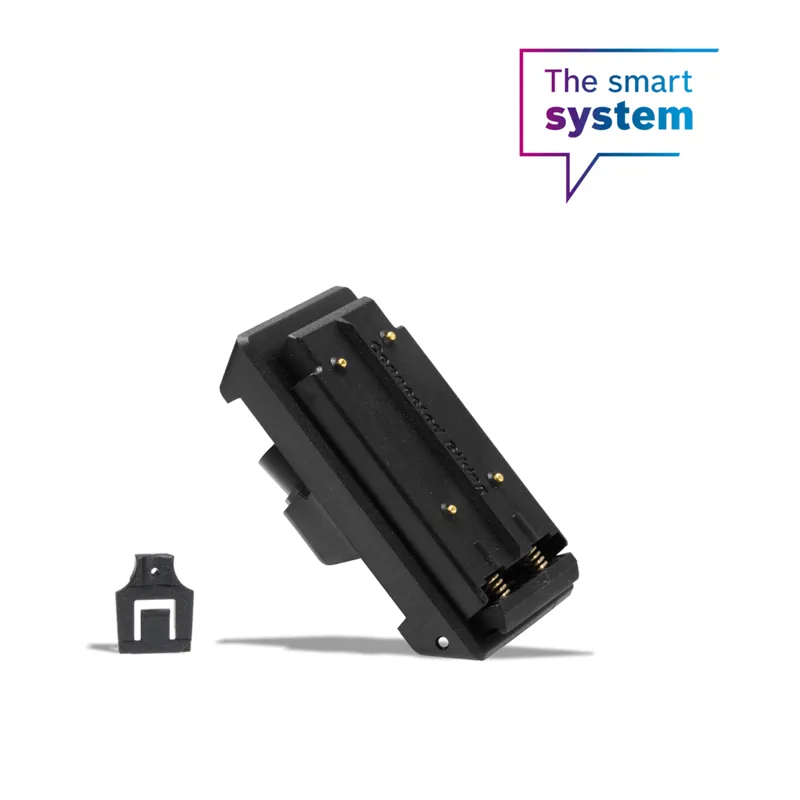

- Display mount

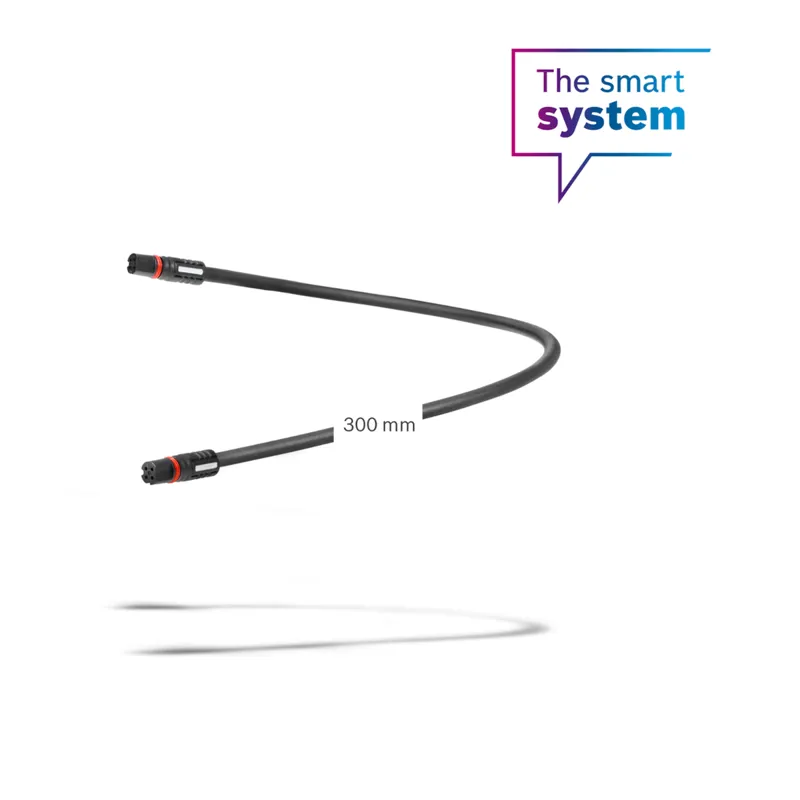

- Bosch Smart System display cable (available in three lengths: 150mm, 250mm, or 300mm)

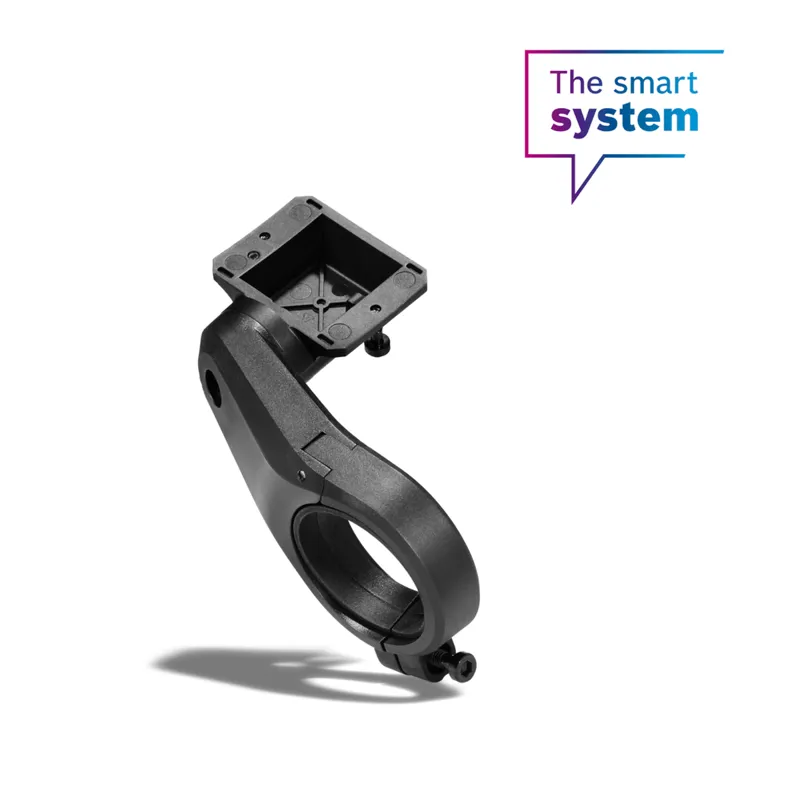

- Matching Kiox 300 handlebar bracket
To retrofit your e-bike, follow these detailed steps to attach all parts and connect the Smart System Display to your Bosch LED Remote control unit on the handlebar. Once installed, your new Kiox 300 display will keep you well-informed about your e-bike's status.
Features of the Bosch Kiox 300 Smart System Retrofit Set
- Comprehensive Retrofit Kit: All necessary components included.
- Bosch Kiox 300 Display: High-resolution display providing detailed e-bike information.
- Bosch Display Interface/Mounts: Flexible mounting options for different handlebar setups.
- Bosch Smart System Display Cable: Available in 150mm, 250mm, or 300mm lengths.
- 1-Arm Handlebar Mount: Compatible with 31.8mm or 35mm handlebars.
Kiox 300: Part of the Bosch Smart System
Since the introduction of the smart system in 2022, Bosch has significantly optimized its e-bike components. The most notable innovation is that the e-bike's central control now operates via the Bosch LED remote handlebar control unit. While this allows for operation without a separate display, the Kiox 300 retrofit kit provides the convenience and detailed status information that many riders prefer.
For more information on the bosch kiox system please visit our blog here: https://blog.cyclomonster.com/?p=1906&preview=true&_thumbnail_id=1913
Bosch Kiox 300 Retrofit Installation Steps
1. Attach the Display Mount
- Determine Mounting Position: Choose whether to mount the display in front of, behind, or above the handlebar.
- For front mounting, use the mount with the cable exit at the back.
- For behind or above handlebar mounting, use the mount with the cable exit at the front.
- Secure the Mount: Attach the Bosch Smart System display mount to the handlebar bracket or the included 1-arm bracket.
2. Connect the Display Cable
- Locate Existing Cable: Find the display cable from the control unit on your e-bike.
- Plug into Mount: Insert the existing display cable into the Kiox 300 mount.
- Use Retrofit Cable: Choose the appropriate length of display cable from the retrofit kit (150mm, 250mm, or 300mm) and connect the display holder to the LED Remote control unit.
3. Finalize Installation
- Secure Connections: Ensure all cables and mounts are firmly connected.
- Power On: Turn on the e-bike and check the functionality of the Kiox 300 display.
Benefits of the Bosch Kiox 300
The Bosch Kiox 300 is a versatile and high-quality e-bike display that enhances your riding experience. Key benefits include:
- Comprehensive Information: Displays battery status, range, speed, selected support level, and more.
- Integrated Control: Operated via the LED remote on the handlebar, keeping your setup simple and efficient.
- Secure Mounting: A small locking plate protects the display from easy removal.
- No Smartphone Charging: Note that the Kiox 300 does not include a smartphone charging feature.
*Please note... Rear plug is required to fit display in front of the handlebars, Front plug is required to fit display behind the hadlebars (when standing over bike)*
By following these steps and utilizing the Bosch Kiox 300 Smart System Retrofit Kit, you can enhance your e-bike with a practical display that keeps you informed and in control during your rides
